产品描述product description

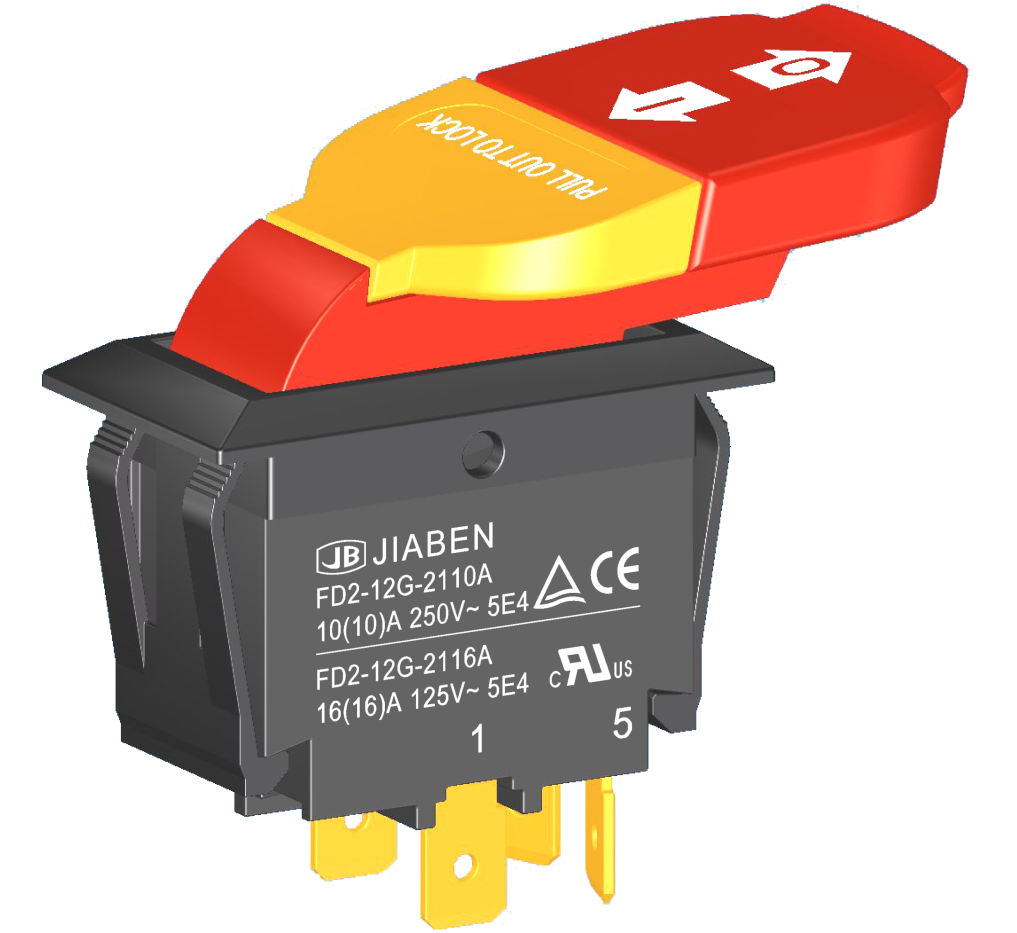

◆fd2-12g系列是一款专用型的倒扳开关，也叫摇杆开关，集成防尘和防水功能，广泛应用于各类台式电动工具，如：台式推拉锯、台式圆锯、台式刨床、台式铣床、台式线锯、台式钻床、台式车床、台式砂轮机、台式瓷砖切割机、地板锯等。
◆fd2-12g series are special type lever switches, integrated dustproof and waterproof, commonly for used in bench top power-tools such as bench push-pull saws, bench circular saws, bench planers, bench routers, bench scroll saws, drill presses, bench lathes, bench grinders, bench marble cutters, floor cutters, etc.
产品特征features
◆可选带以下功能 optional with following function:
→单极单掷 spst (single pole single throw)
→单极双掷 spdt (single pole double throw)
→单极双掷中间断开 spdt with center off
→双极单掷 dpst (double pole single throw)
→双极双掷 dpdt (double pole double throw)
→双极双掷带中间断开 dpdt with center off
◆可选带以下附件 optional with following accessory:
→儿童安全锁 key for children's safety
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5/ 5e4
→电气耐久寿命 electrical life endurance≥5e4/ 1e4
→最大冲击电流 max.inrush current at 250v90a
→最大冲击电流 max.inrush current at 125v132a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip54
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 soldering terminals 4.8×0.8mm
→螺钉端子 screw terminals m3.5
电气参数和认证 electric rating and certification
