产品描述product description

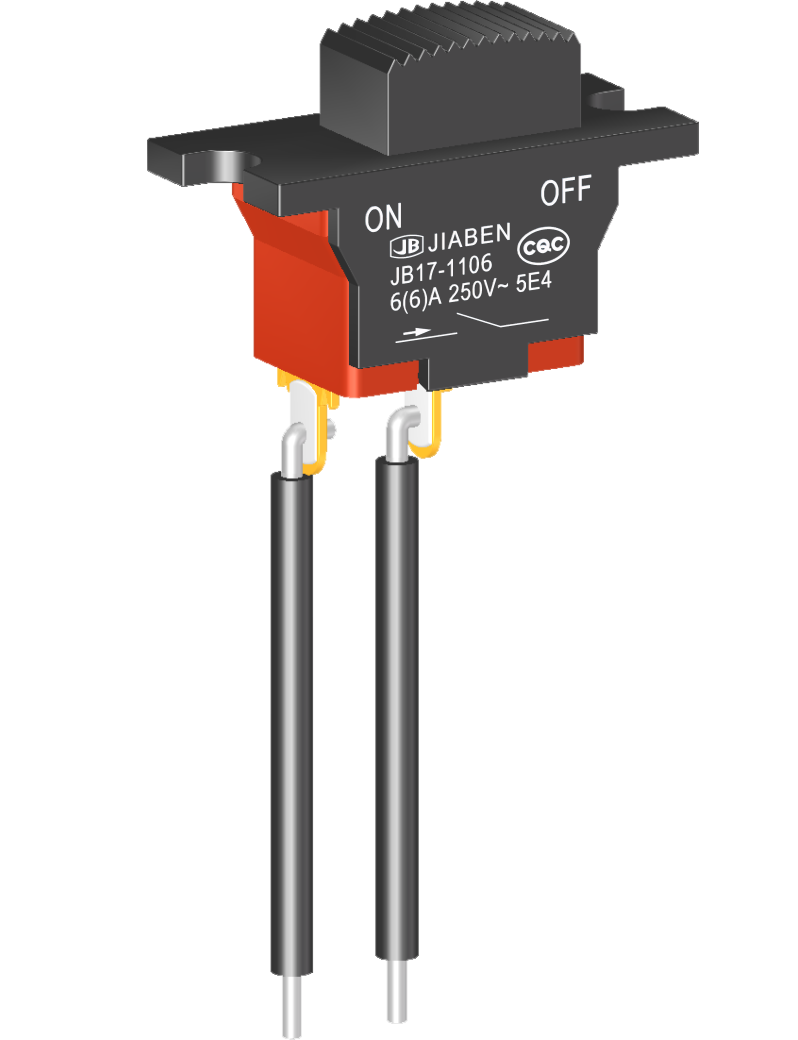

◆jb17系列是一款专用型的滑动开关，也叫推拉开关或推拨开关，集成防尘功能，适用于小型的电动工具，如：砂光机、100mm和125mm角磨机等。
◆jb17 series are one special type slide switches, integratd dustproof, special for low rated portable power-tools, such as: orbit sanders, 100mm and 125mm small angle grinders, etc.
产品特征features
◆可选带以下功能 optional with the function as follows:
→单极常开 single pole single throw (spst)
→单极双掷 single pole double throw (spdt)
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v36a
→最大冲击电流 max. inrush current at 127v60a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 diele ctric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip50
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 solder terminals
→线路板焊接端子 pcb solder terminals
电气参数和认证 electric rating and certification
