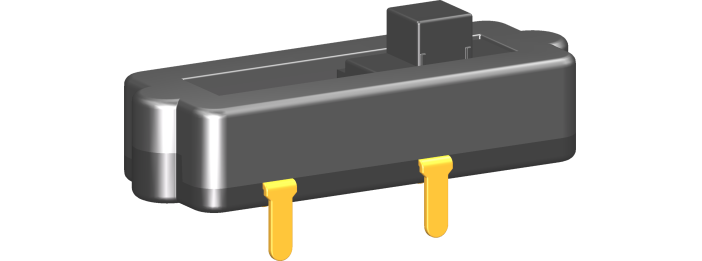

fdw滑动(推拉)开关

fdw series slide (push-pull) switch

产品描述product description

fdw系列是一款专用型的滑动开关,也可推拉并芙或推拨并关,应用于小电流的电动工具或家用电器上,如:直流充电电钻、烫发器等。
fdw seriesarespeciai typesiideswitches, commoniy forusedin low current power-tools or home appliances, such as dccordless drill, hair iron, etc.

产品特征features

◆可选带以下功能 optional with following function:

◆单极三档位single pole 3 position (sp3p)

技术数据technical data

机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命e lectrical life endurance≥5e4
→最大电流 max. current at 250v4a
最大电流 max. current at 127v8a
接触电阻 contact resistance30m ohm
→绝缘电阻 lnsulation resistance7m ohm
基本介电强度 dielectric strength of function500v
环境温度 ambient temperature-25℃~125℃
阻燃等级 flammabilityul94v-0
适用于ii类防护器具 suitable for appliances of protection class ii

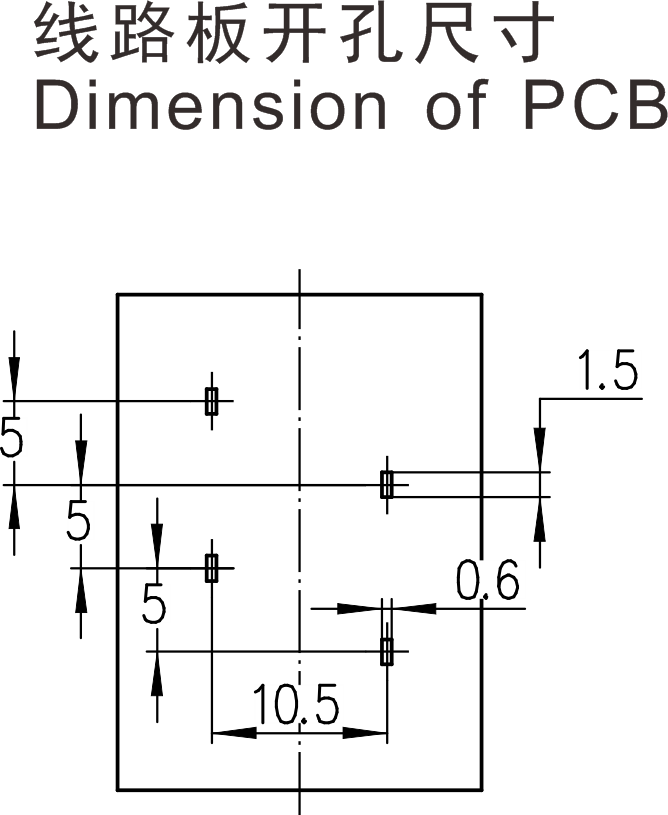

端子类型terminals

输入端/输出端 input sidel/output side:
→线路板端子 pcb soldering terminals 1.0×0.6mm

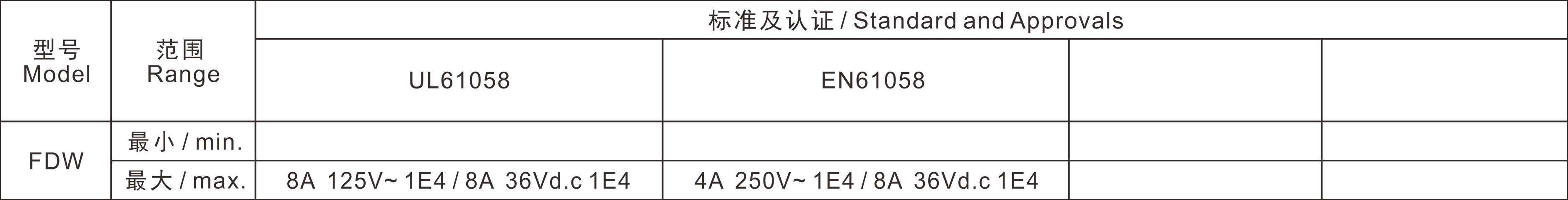

电气参数和认证 electric rating and certification
