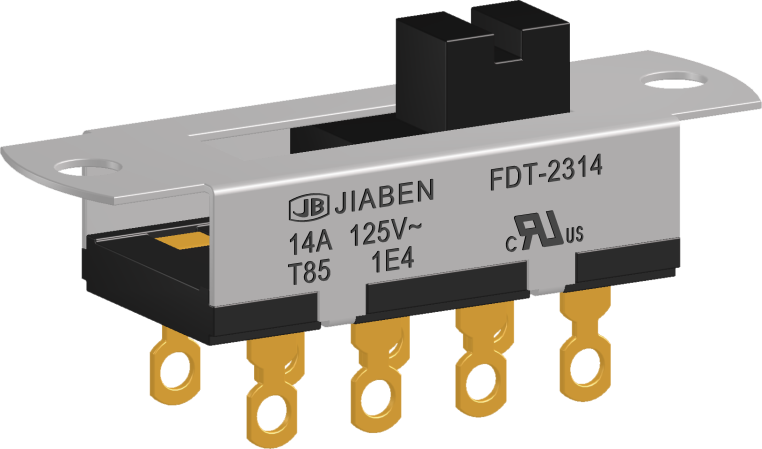

fdt滑动(推拉)开关

fdt series slide (push-pull) switches

产品描述product description

fdt系列是一款通用型的滑动开关,也叫推拉开关或推拨开关,应用于各类需要档位控制的电动工具和小家电,如:热风枪、吹吸机、电吹风等。
fdt series are general type slide switches, commonly for used in power-tools and small home appliances such as heat guns, blowers, hair dryers, etc.

产品特征features

◆可选带以下功能 optional with following function:
→单极两档位动 single pole 2 position
→双极两档位 double pole 2 position
→单极两档位点动 single pole 2 position momentary act
→双极两档位点动 double pole 2 position momentary act
→单极三档位 single pole 3 position
→双极三档位 double pole 3 position

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. inrush current at 125v16a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function500v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 solder terminals 2.7×0.6mm
→线路板焊接端子 pcb soldering terminals 0.8×0.6mm
→线路板焊接端子 pcb soldering terminals 1.5×0.6mm

电气参数和认证 electric rating and certification

订货信息ordering information
