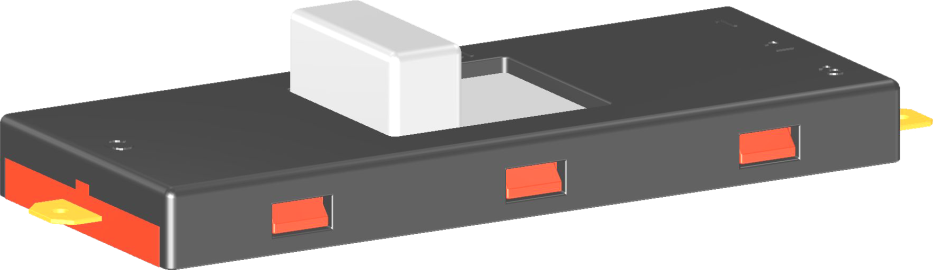

fds滑动(推拉)开关

fds series slide (push-pull) switches

产品描述product description

fds系列是一款专用型的滑动开关,也叫推拉开关或推拨开关,应用于各类需要微电流档位控制的电器,如:直流充电电钻、直流充电螺丝起子、直流充电灯等。
fds series are special type slide switches, commonly for used in micro current appliances such as dc cordless drills, dc cordless screwdrivers, dc cordless lights, etc.

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大电流 max. current at 24vd.c0.5a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

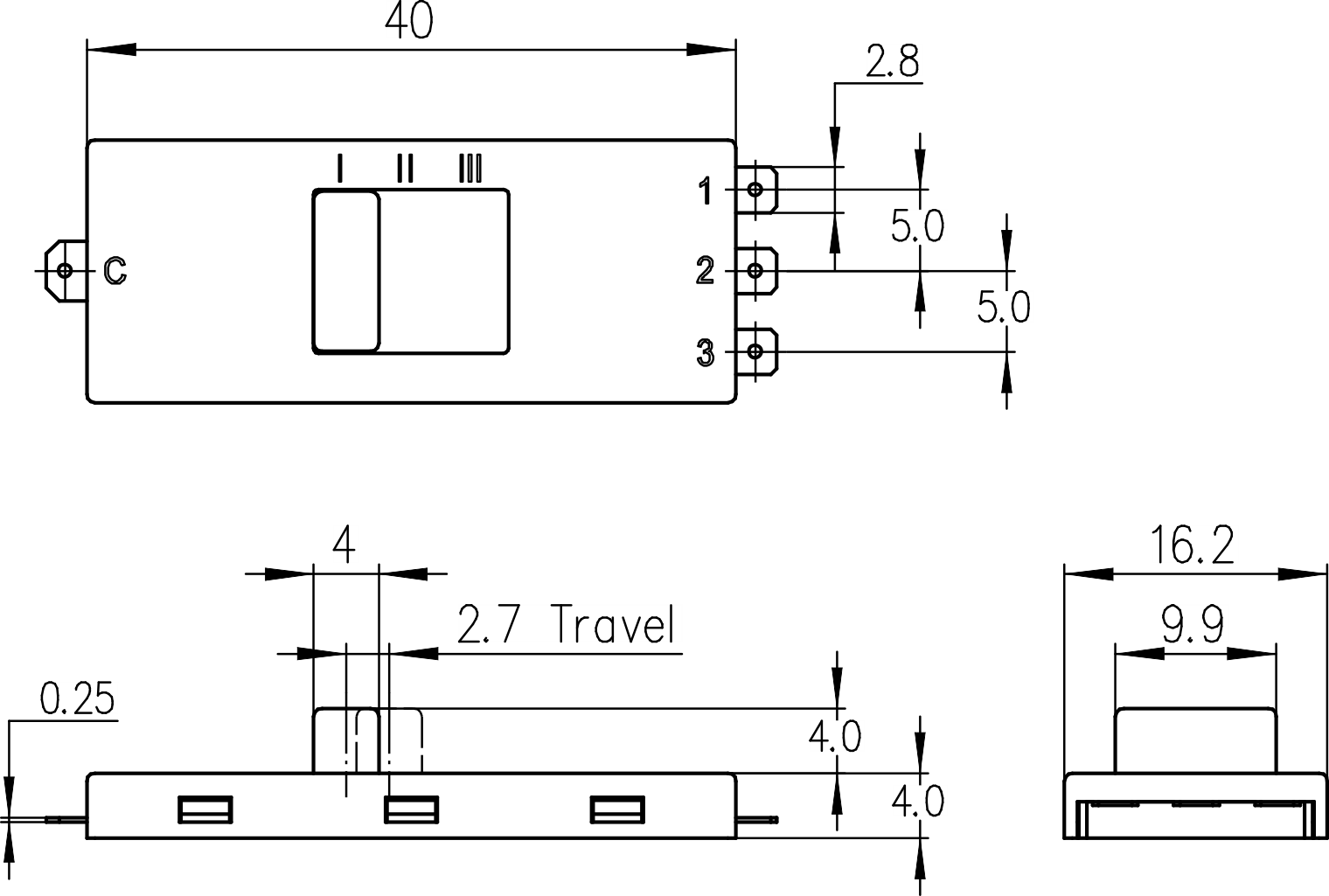

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals 4-φ=0.8mm
★本产品荣获实用新型专利,专利号:zl201821372793.x
★utility model patented with the no. is zl201821372793.x

电气参数和认证 electric rating and certification
