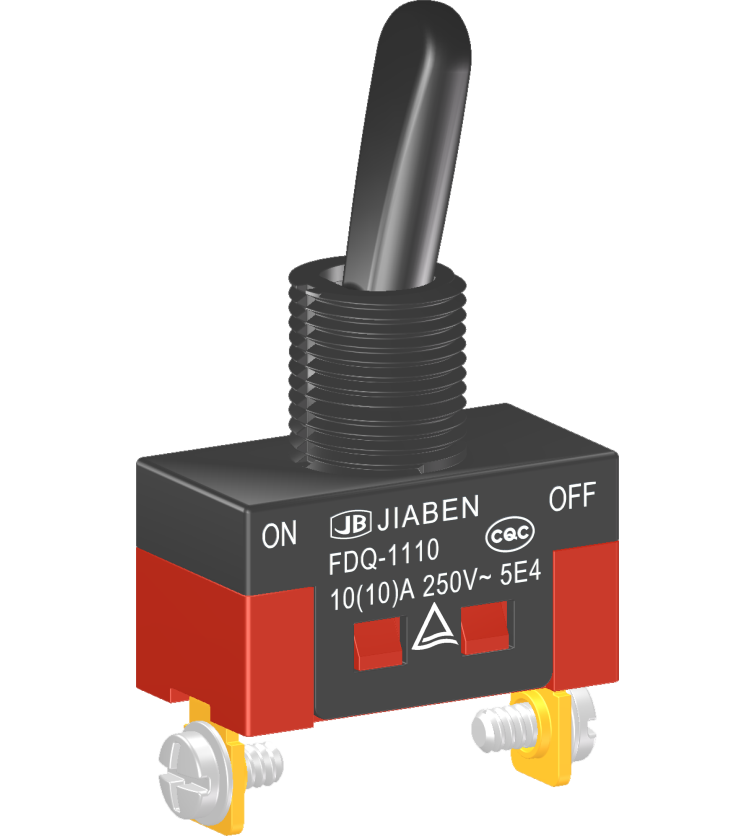

fdq防尘倒扳开关

fdq series dustproof lever switches

产品描述product description

fdq系列是一款专用型的倒扳开关,也叫摇杆开关,集成防尘功能,应用于各类电动工具,如:100和125角磨机、电木铣、模具电磨等。
fdq series are one special type lever switches, integrated dustproof, commonly for used in portable power-tools such as 100mm and 125mm angle grinders, routers, die grinders, etc.

产品特征features

◆可选带以下功能 optional with following function:
→单极单掷 spst (single pole single throw)
→单极双掷 spdt (single pole double throw)
◆可选带以下附件 optional with following accessories:
→防尘套 dustproof sheath
→安装螺母 nut for installation

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v72a
→最大冲击电流 max. inrush current at 127v108a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/輸出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 soldering terminals 4.8×0.8mm
→螺钉端子 screw terminals m3.5

电气参数和认证 electric rating and certification

订货信息ordering information
