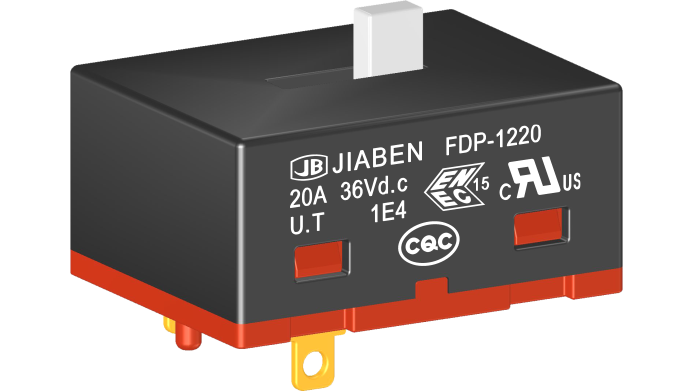

产品描述product description
◆fdp系列是一款通用型的滑动开关，也叫推拉开关或推拨开关，应用于各类手持电动工具，如：100和125角磨机、多功能工具等。
◆fdp series are general type slide switches, commonly for used in power-tools such as 100mm and 125mm angle grinders, multi-function tools, etc.
产品特征features
◆可选带以下功能 optional with the following function:
→单极单掷 spst (single pole single throw)
→单极双掷 spdt (single pole double throw)
◆内部为跷板结构，使用寿命可达5万次
◆with rocker structure, the endurance life can be 50,000 cycles
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5/ 5e4
→电气耐久寿命 electrical life endurance≥5e4/1e4
→最大冲击电流 max. inrush current at 250v48a
→最大冲击电流 max. inrush current at 125v72a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→线路板焊接端子 pcb soldering terminals 1.4×0.6mm
→焊接端子 soldering terminals 2.6×0.6mm
→焊接端子 soldering terminals 3.0×0.8mm
→插片端子 plug-in terminals 4.8×0.8mm
电气参数和认证 electric rating and certification
