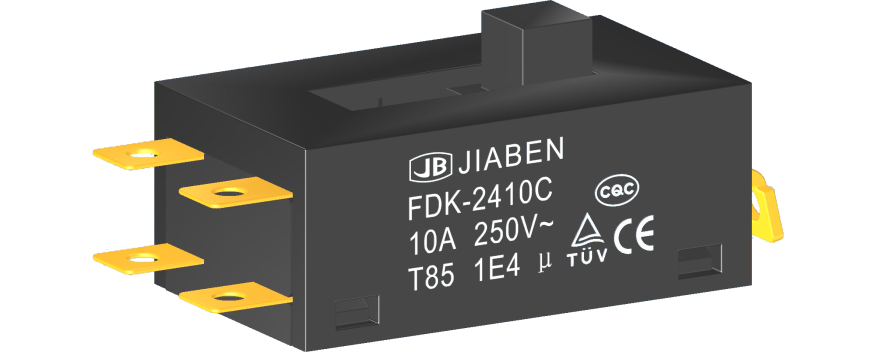

fdk滑动(推拉)开关

fdk series slide (push-pull) switches

产品描述product description

fdk系列是一款通用型的推拉开关,也叫滑动开关,广泛应用于各类需要档位控制的电动工具和小家电,如:热风枪、电吹风等。
fdk series are general type slide switches, commonly for used in power-tools and small home appliances such as heat guns, hair drvers, etc.

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. current at 250v10a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥100m  ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

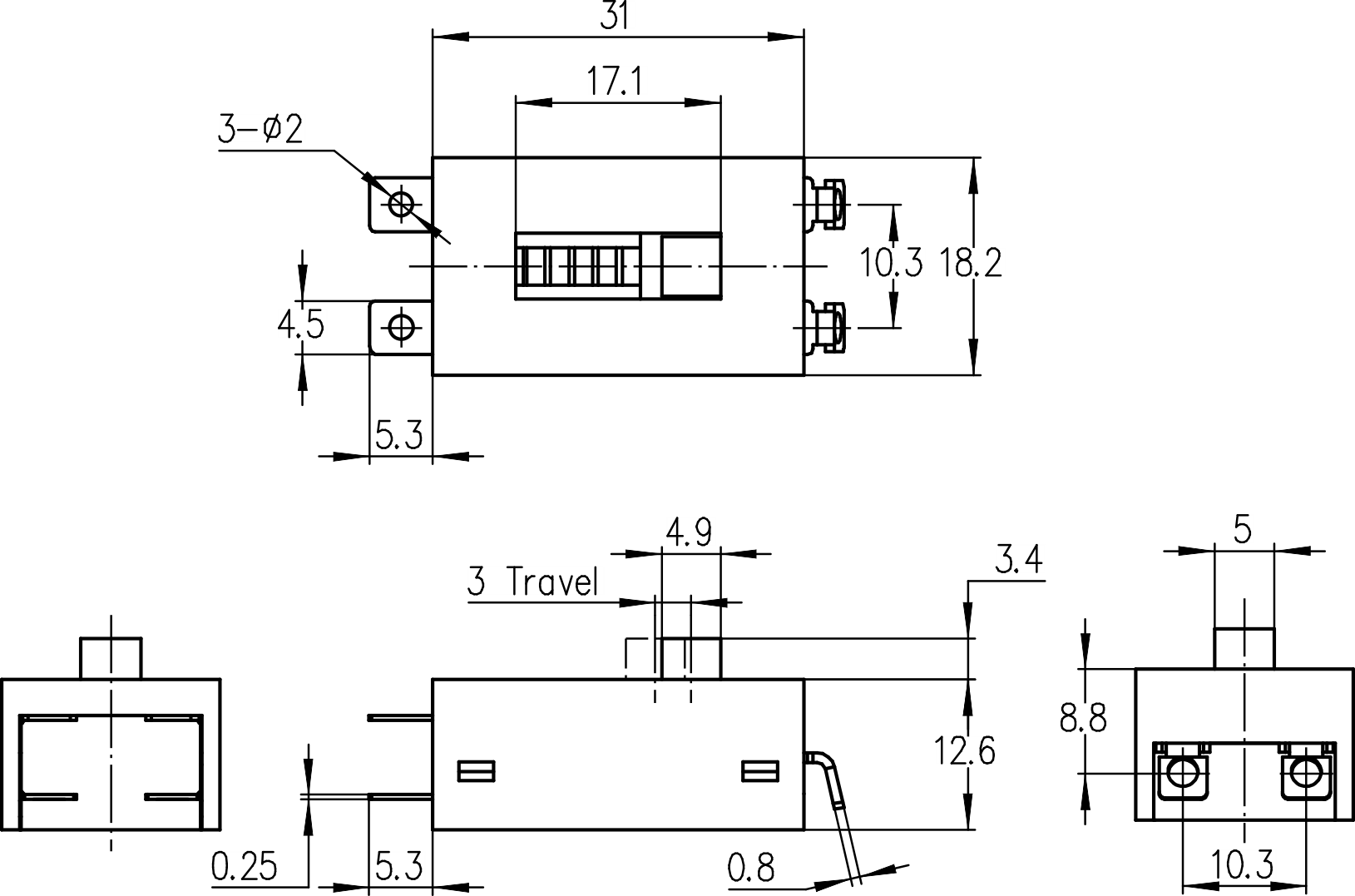

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子s oldering terminals φ=2.0mm

电气参数和认证 electric rating and certification
