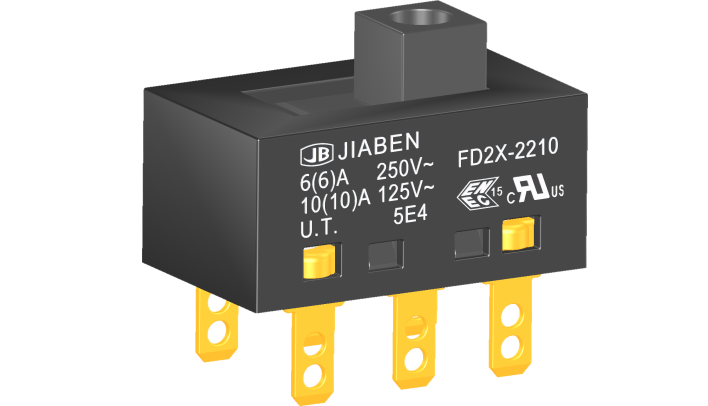

产品描述product description
◆fd2x系列是一款通用型的滑动开关，也叫推拉开关或推拨开关，应用于各类需要档位控制的电动工具，如：吹吸机、多功能锯、打草机等。
◆fd2x series are general type slide switches, commonly for used in power-tools such as blowers, multi-function saws, grass trimmers, etc.
产品特征features
◆内部为跷板结构，使用寿命可达5万次
◆with rocker structure, the endurance life can be 50,000 cycles
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v36a
→最大冲击电流 max. inrush current at 125v60a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~ 55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliance s of protection class ii

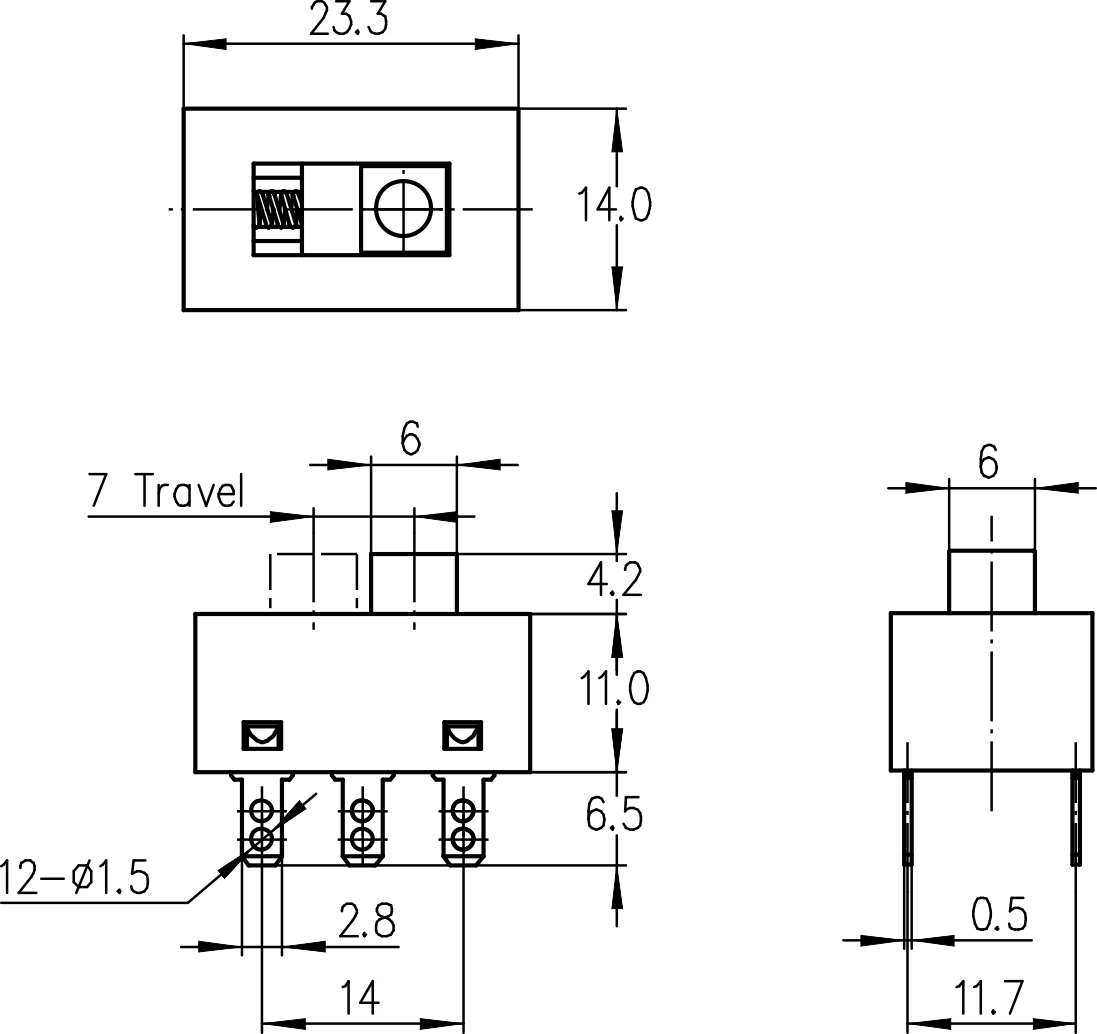

端子类型terminals
◆输入端/输出端 input side/output side:
→焊接端子soldering terminals 2.8×0.5mm
→线路板焊接端子pcb soldering terminals 2.8×0.5mm
电气参数和认证 electric rating and certification
