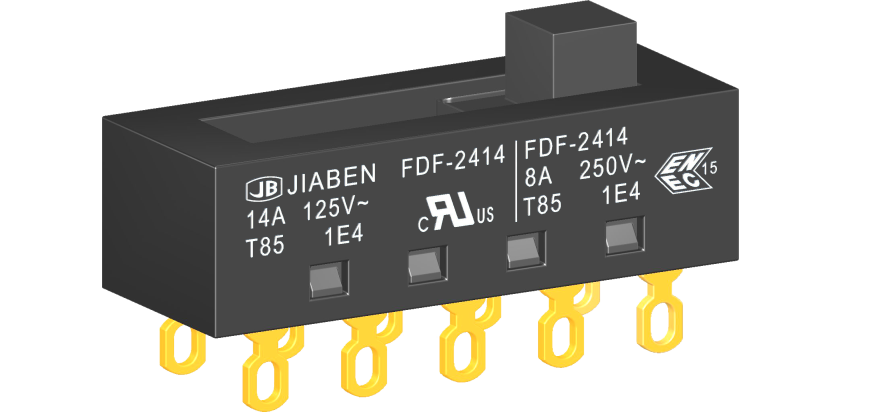

产品描述product description
◆fdf系列是一款通用型的滑动开关，也叫推拉开关或推拨开关，广泛应用于各类需要档位控制的电动工具和小家电，如：热风枪、吹吸机、电吹风、电风扇、取暖器、料理机等。
◆fdf series are general type slide switches, commonly for used in power-tools and small home appliances such as heat guns, blowers, hair dryers, electric fans, electric heating apparatus, cooking machines, etc.
产品特征features
◆可选带以下功能 optional with following function:
→双极2档位 double pole 2 position (dp2p)
→双极3档位 double pole 3 position (dp3p)
→双极4档位 double pole 4 position (dp4p)
→双极5档位 double pole 5 position (dp5p)
技术数据technical data
→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命electrical life endurance≥1e4
→最大电流 max. current at 250v10a
→最大电流 max. current at 125v16a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

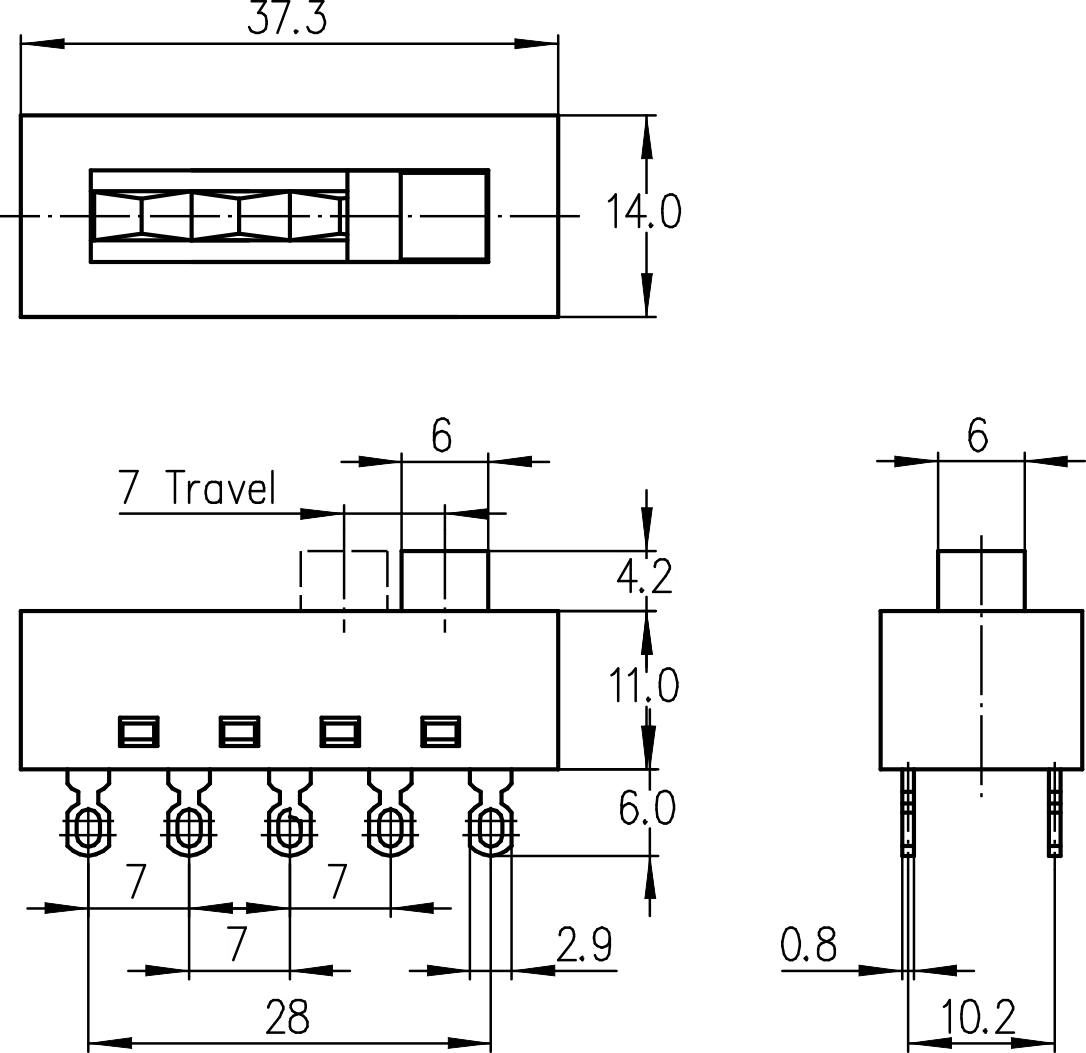

端子类型terminals
◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals 2.9×0.8mm
→线路板焊接端子 pcb soldering terminals 0.8×0.8mm
→插片端子 plug-in terminals 2.8×0.8mm
→焊接端子 soldering terminals 2.8×0.8mm
电气参数和认证 electric rating and certification
