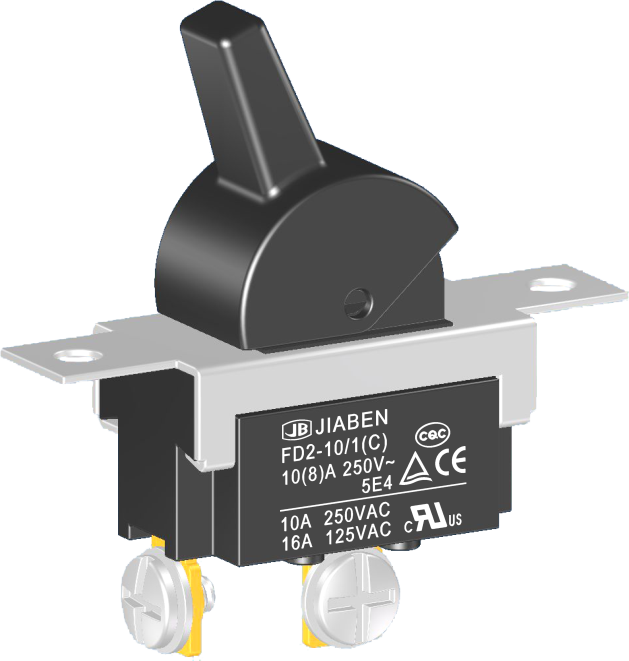

◆fdc系列是一款专用型的倒扳开关，也叫摇杆开关或拨动开关，应用于各类电动工具，如：电木铣、台式砂轮机等。 ◆fdc series are one special type lever switch, for used in power-tools such as routers, bench grinders, etc.
产品特征features
◆可选带以下功能 optional with following function: →单极单掷 spst (single pole single throw) →单极双掷 spdt (single pole double throw)
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5 →电气耐久寿命 electrical life endurance≥5e4 →最大冲击电流 max.inrush current at 250v60a →最大冲击电流 max.inrush current at 127v96a →接触电阻 contact resistance≤30m ohm →绝缘电阻 insulation resistance≥7m ohm →基本介电强度 dielectric strength of function1500v →加强介电强度 dielectric strength of reinforced3000v →环境温度 ambient temperature0°c~55°c →阻燃等级 flammabilityul 94v-0 →防护等级 protection typeip40 →适用于ii类防护器具 suitable for appliances of protection class ii
