产品描述product description

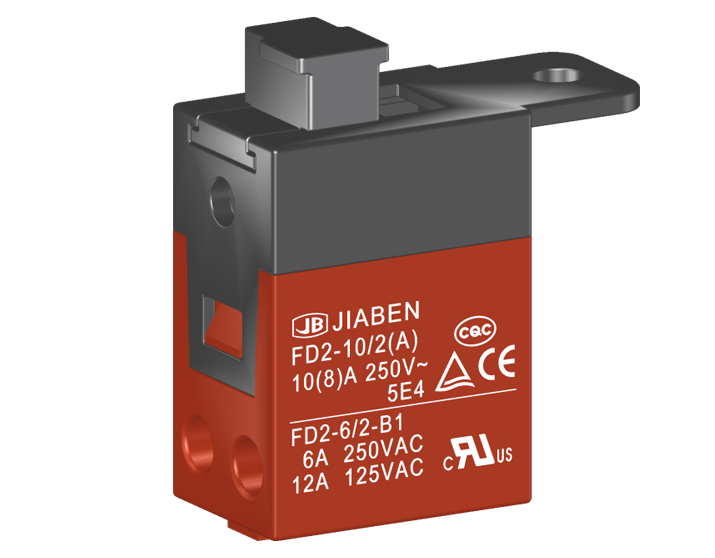

◆fda系列是一款专用型的倒扳开关，也叫摇杆开关或拨动开关，集成防尘功能，应用于各类电动工具，如：100和125角向磨光机、电木铣、模具电磨、电锤、电镐等。
◆fda series are one special type lever switches, integrated dustproof, commonly for used in power-tools such as 100mm and 125mm angle grinders, routers, die grinders, rotary hammers,demolition hammers, etc.
产品特征features
◆可选带以下附件 optional with following accessories:

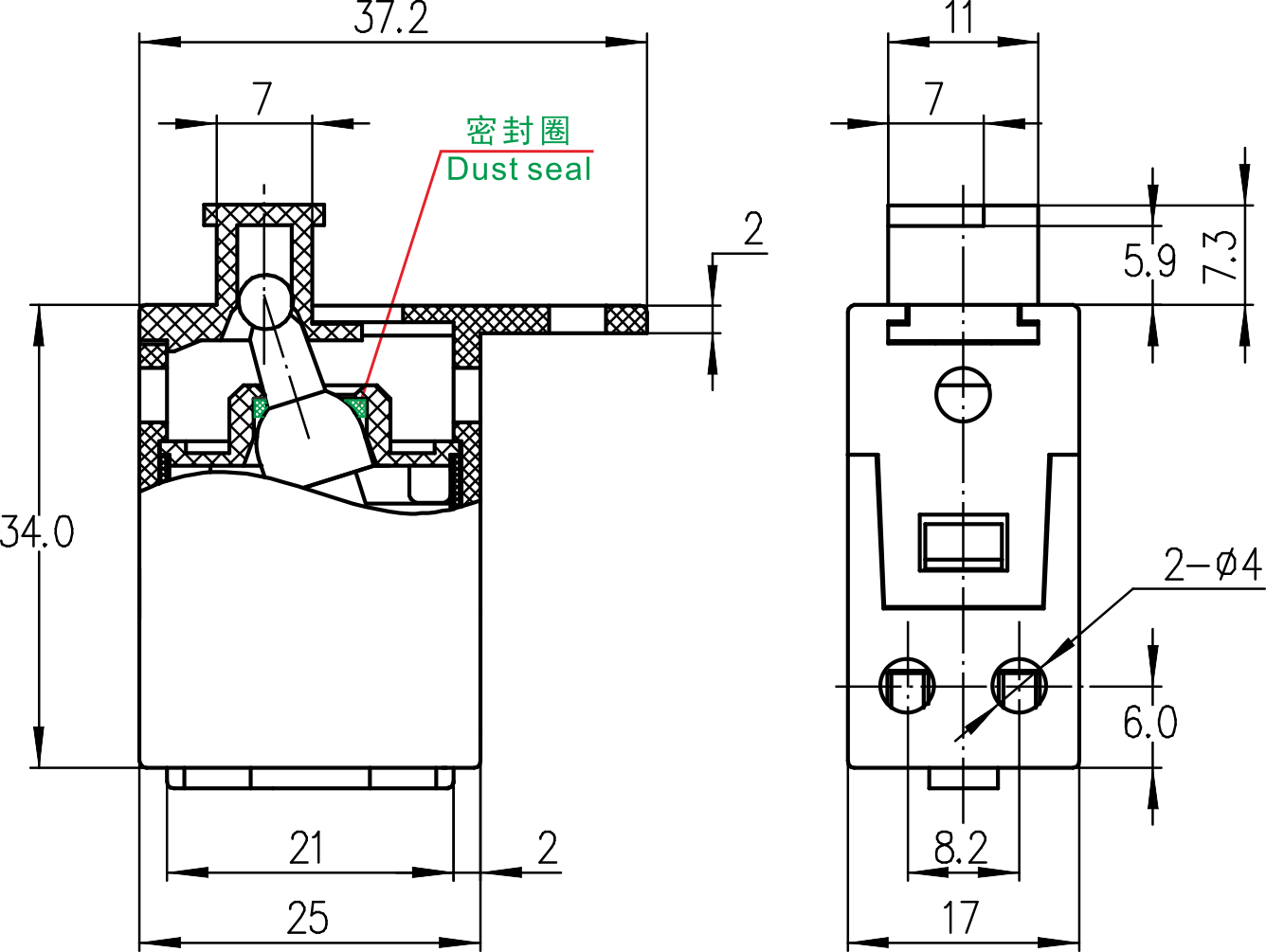

→防尘套 dustproof sheath
→安装螺母 nut for installation
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush current at 127v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→接线柱端子 pillar terminals φ=3mm
电气参数和认证 electric rating and certification
