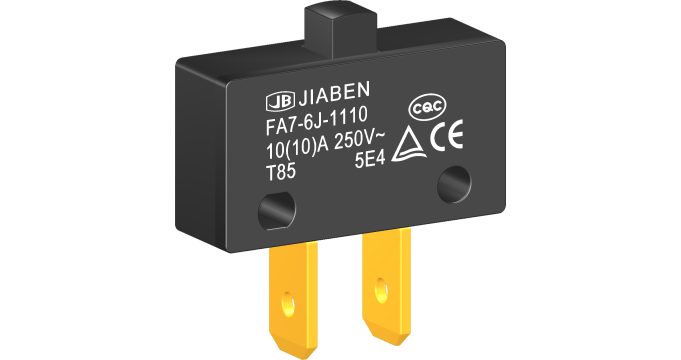

fa7-6g/fa7-6j按钮开关

fa7-6g/fa7-6j series push-button switches

产品描述product description

fa7-6j系列是一-款专用型的按钮开关,应用于手持式电动工具或小家电,如:电动钉枪、电吹风等。
fa7-6j series are special type push-button switch, for used in portable power tools or small appliances such as electric tackers, hair driers, etc.

产品特征features

◆可选带以下功能 optional with the function as follows:
→单极常开 spno (single pole normally open)
→单极双掷 spdt (single pole double throw)
→单极常闭 spnc (single pole normally close)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4/1e5
→电气耐久寿命 electrical life endurance≥1e4/5e4
→最大电流 max. current at 250v10a
→最大电流 max. current at 125v16a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c;
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals

电气参数和认证 electric rating and certification
