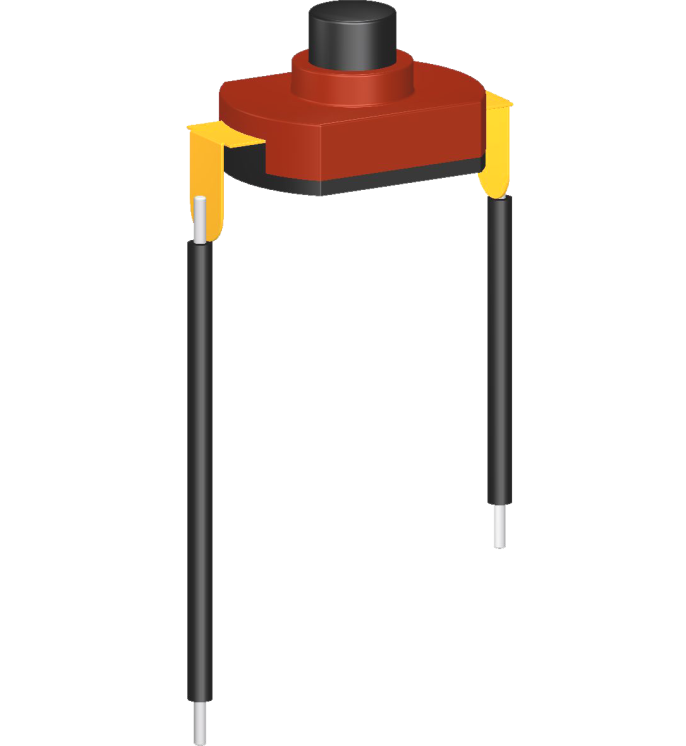

fa7-6g/fa7-6j按钮开关

fa7-6g/fa7-6j series push-button switches

产品描述product description

fa7-6g系列是一款小型型的2档位或3档位按钮开关,应用于各类小型低电流电器,如:充电式电筒、玩具、剃须刀等。
fa7-6g series are mini-type push-button switch with 2 postion or 3 position, for used in low current appliances such as rechargeable lights, toys or shavers, etc.

产品特征features

◆可选带以下功能 optional with the function as follows:
→单极常开 spno (single pole normally open)
→单极常开带闭合自锁 spno with latching

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. currentat 12vd.c0.1a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~85c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals

电气参数和认证 electric rating and certification
