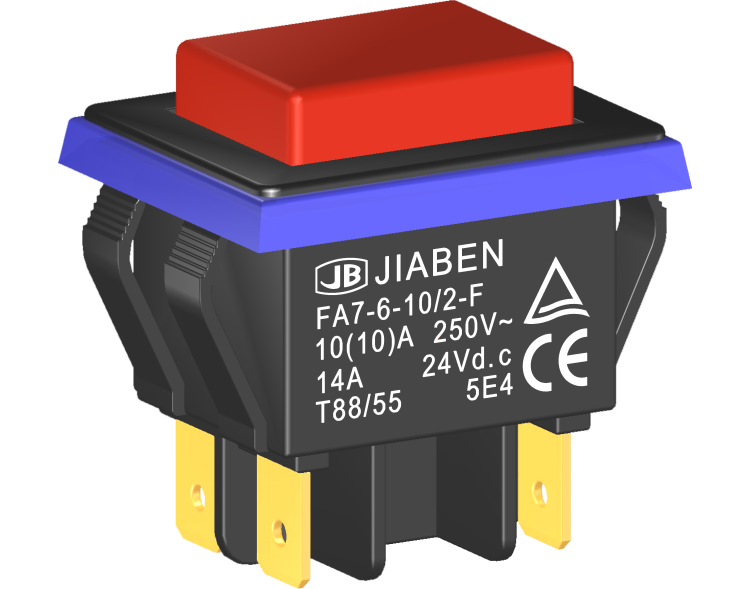

产品描述product description
◆fa7-6f系列是一款专用型的按钮开关，应用于各类台式电动工具和家用电器，如：台锯、台式砂轮机、台式砂带机、真空吸尘器、干湿两用吸尘器、高压清洗机等。
◆fa7-6f series are special type push-button switch, commonly for used in bench-top power-tools and home appliances such as table saws, bench grinders, belt sanders, vacuum cleaners, day and wet vacuum cleaners, electric high pressure washers,etc.
产品特征features
◆可选带以下功能 optional with following function:
→双极常开 dpno
→双极常开带自锁 dpno with latching

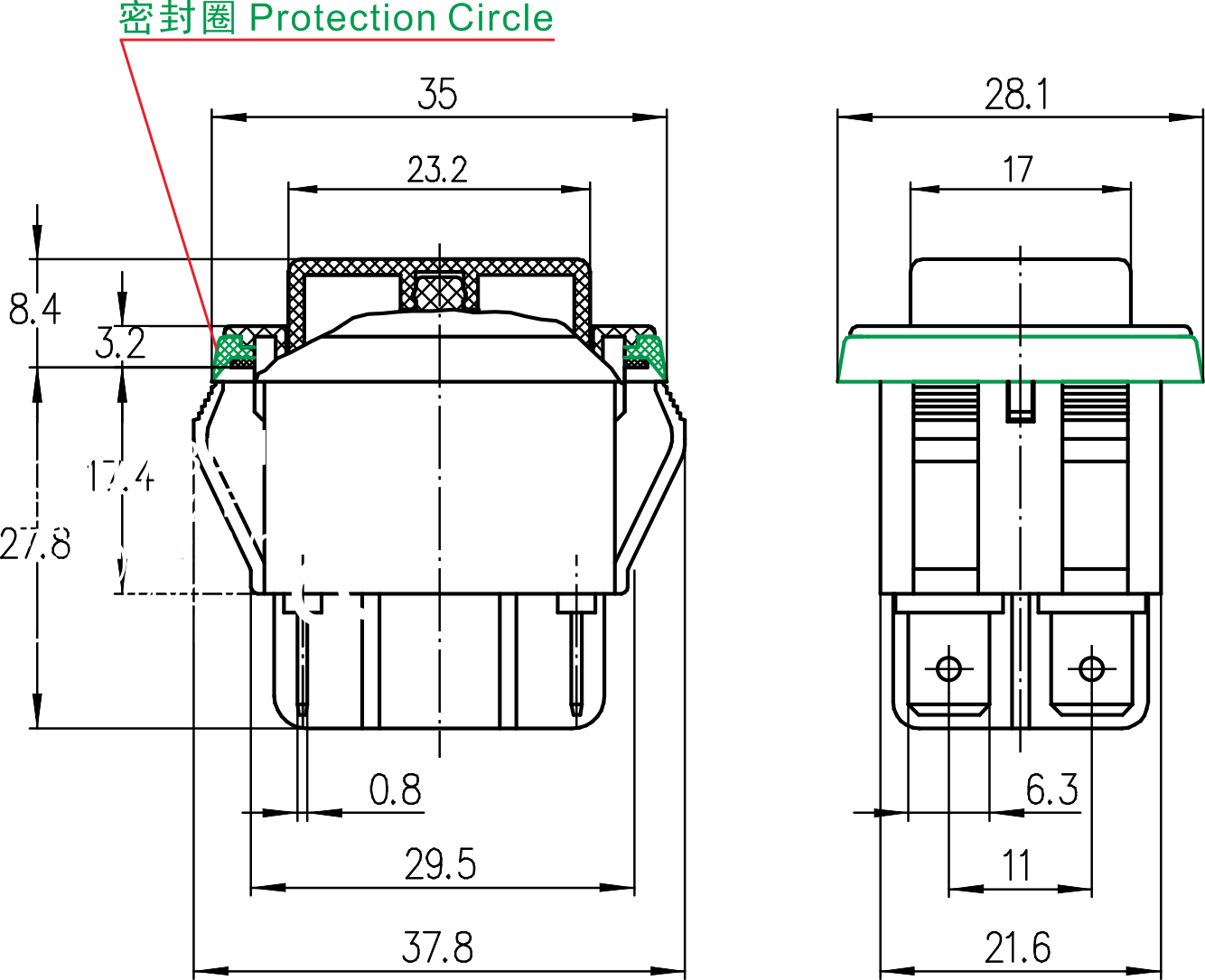

→带防护罩→带防护罩可实现防尘防水功能（和器具安装后）
→optional with protection cap for dustproof and waterproof (after installed with the appliances)
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v84a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→操动件温度 actuator temperature0°c~55c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 solder terminals
→线路板焊接端子 pcb solder terminals
电气参数和认证 electric rating and certification
