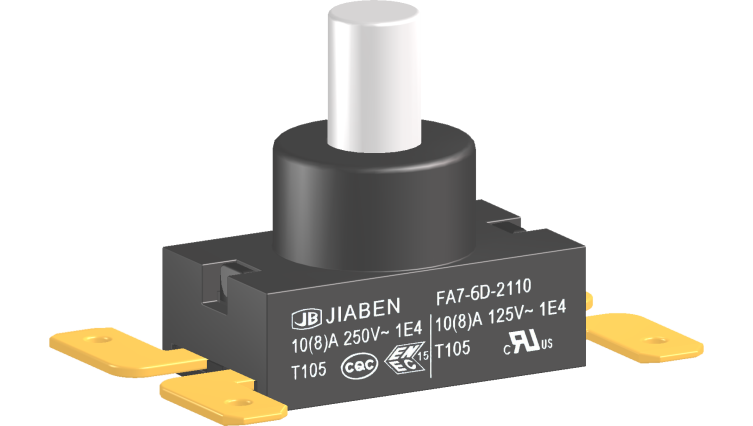

fa7-6d按钮开关

fa7-6d series push-button switches

产品描述product description

fa7-6d系列是一款通用型的按钮开关,应用于各类家用电器和园林工具,如:真空吸尘器、充电灯、打草机等。
fa7-6d series are general type push-button switch, commonly for used in home appliances or gardening tools such as vacuum cleaners, chargeable lights, grass trimmers, etc.

产品特征features

◆可选带以下功能 optional with following function:
→单极常开 spno
→双极常开 dpno
→单极常开带自锁 spno with latching
→双极常开带自锁 dpno with latching

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大冲击电流 max. inrush current at 250v48a
→最大冲击电流 max. inrush current at 125v48a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 diele ctric strength of function1500v
→加强介电强度 diele ctric strength of reinforced3000v
→环境温度 ambient temperature0°c~105°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection type ip40
→适用于ii类防护器具 suitable for appliances of protection class ii

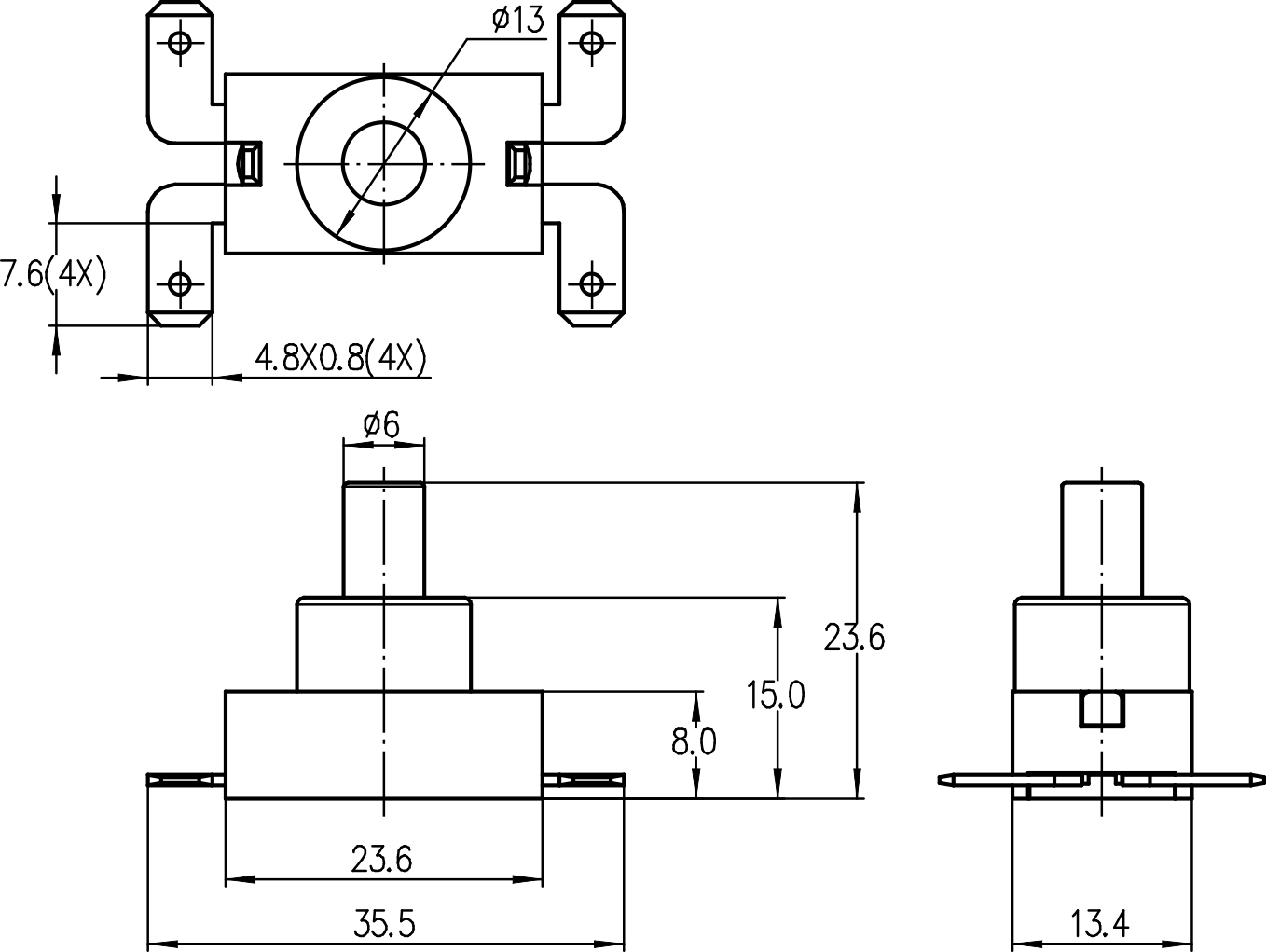

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 4.8×0.8mm

电气参数和认证 electric rating and certification

订货信息ordering information
