产品描述product description

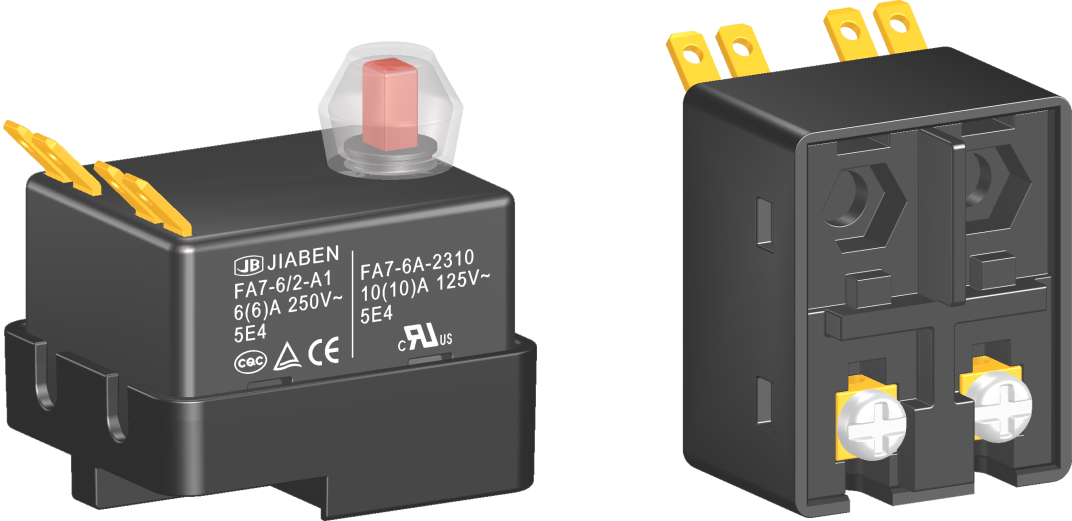

◆fa7-6a系列是一款专用型的按钮开关，集成防尘功能，内部为快速动作结构，应用于各类手持式电动工具，如：100和125角向磨光机、模具电磨、也可应用于电动园林工具、如：打草机、小型电链锯等。
◆fa7-6a series are special type push-button switch, integrated dustproof, with snap-action structure, for used in portable power-tools such as 100mm and 125mm angle grinders, die grinders, etc. also suitable for gardening tools, such as grass trimmers, small electric chain saws, etc.
产品特征features
◆可选带以下附件 optional with the accessories as follows:
→开关下盖 switch bottom cover
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush current at 125v90a
→接触电阻 contact re sistance≤30m ohm
→绝缘电阻 insulation resistance≥7mohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

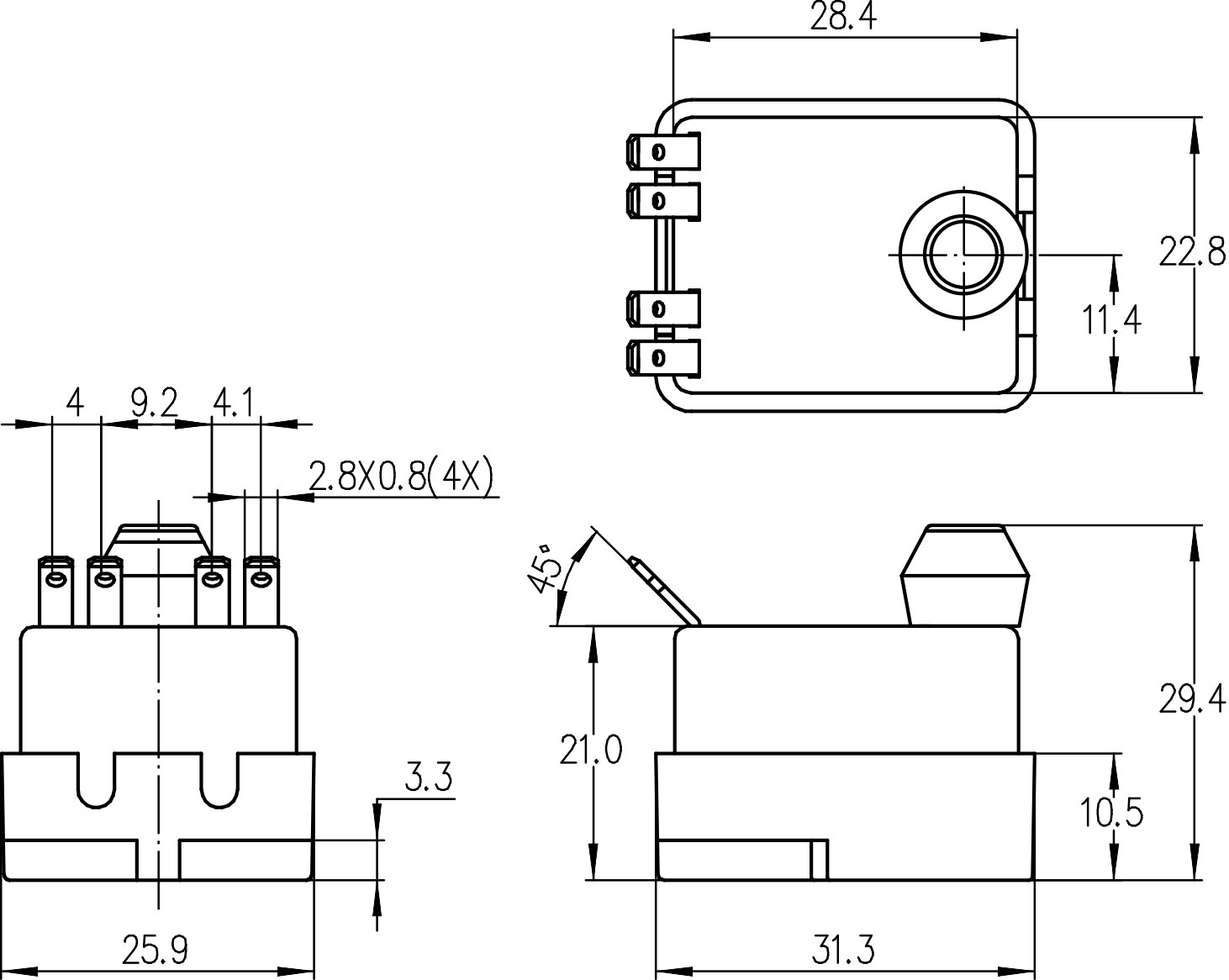

端子类型terminals
◆输入端 input side:
→2×接线柱端子 pillar terminals φ=2.8mm
◆输出端 output side:
→可选螺钉端子 optional screw terminals m3.5/m3.0
→可选接线柱端子 optional pillar terminals φ=2.8mm
→可选插片端子 optional 2.8×0.8mm
电气参数和认证 electric rating and certification
