产品描述product description

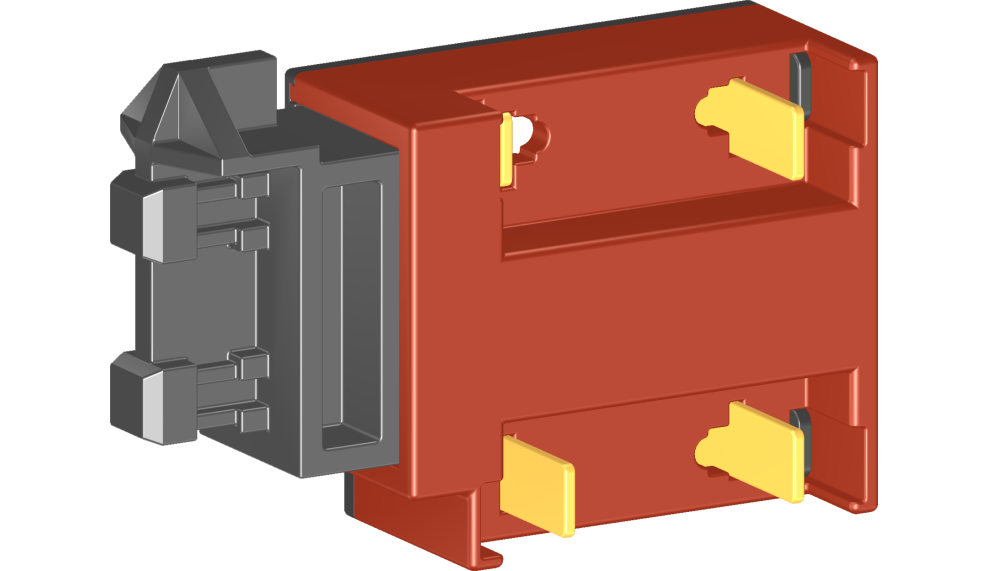

◆fa1-6h系列是一款通用型的高额定扳机开关，有集成防尘功能主体，特别适用于直流电动工具和园林工具，如：直流电圆锯、直流电链锯、直流电动割草机、直流电动扫雪机等。
◆fa1-6h series are general type high rated trigger switch, have integrated dustproof version, special for used in dc power-tools and gardening tools such as dc circular saws, dc electric chain saws, dc electric lawnmowers, dc electric snowthrowers, etc.
产品特征features
◆可选带以下功能类型 optional with following function types:
→单极常开 single pole normally open (spno)
→单极双掷 single pole double throw (spdt)
→一极常闭，另一极常开
one pole normally open, the other normally close
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v90a
→最大冲击电流 max. inrush current at 125v120a
→接触电阻 contact resistance≤30m oh m
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/ output side:
→焊接端子 soldering terminals
电气参数和认证 electric rating and certification
