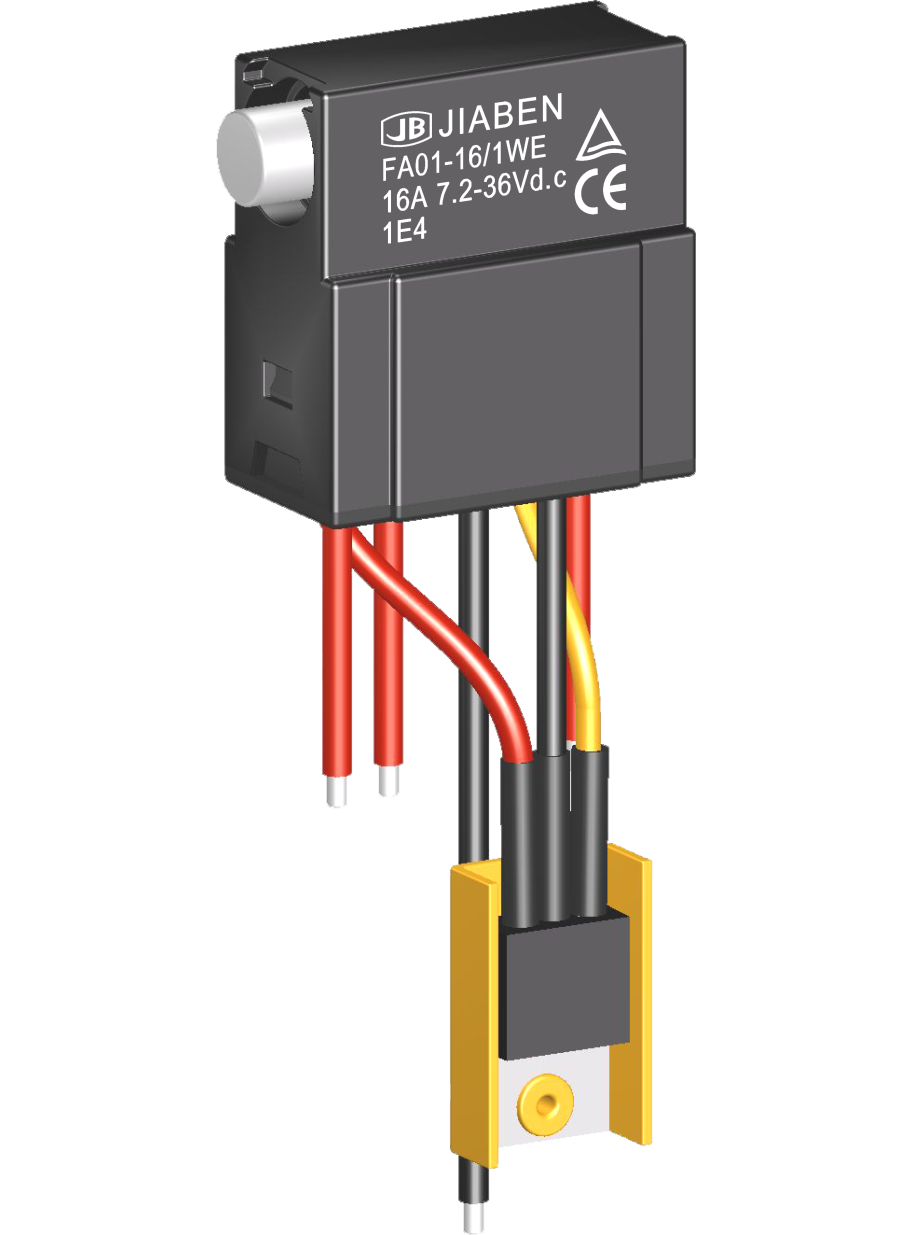

产品描述product description
◆fa01系列是一款通用型的直流扳机调速开关，集成防尘和机械刹车接点，可选带换向盒，应用于各类直流充电式手持电动工具，如：充电式电钻、充电式螺丝起子等，也可用于充电式钻骨机、充电式胸骨锯、充电式摆锯等直流医疗器械。
◆fa01 series are one general type dc variable speed trigger switches, integrated dustproof and mechanical brake contact, optional with reversing box, for used in dc cordless portable power-tools such as: cordless drills, cordless screw drivers, etc. also special for used in dc medical tools, such as cordless bone drills, cordless sternum saws, cordless overhaul saws, etc.
产品特征features
◆可选带以下功能 optional with the function as follows:
→电子调速功能 electronics speed control function
→通断功能 on-off version
→通断功能带电位器输出 on-off with linear potentiometer output
◆可选带以下附件功能 optional with the accessories as follows:
→mos管散热片 heatsink for mosfet
→包软胶扳机trigger covered with rubber (overmolding)
技术数据technical data
→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命e lectrical life endurance≥1e4
→最大电流 max.current at 36vd.c16a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
◆开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用.
◆the electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class ii.
端子类型terminals
◆输入端/输出端 input side/ output side:
→插入式端子 push-in terminal
→导线端子 wire terminal
电气参数和认证 electric rating and certification
