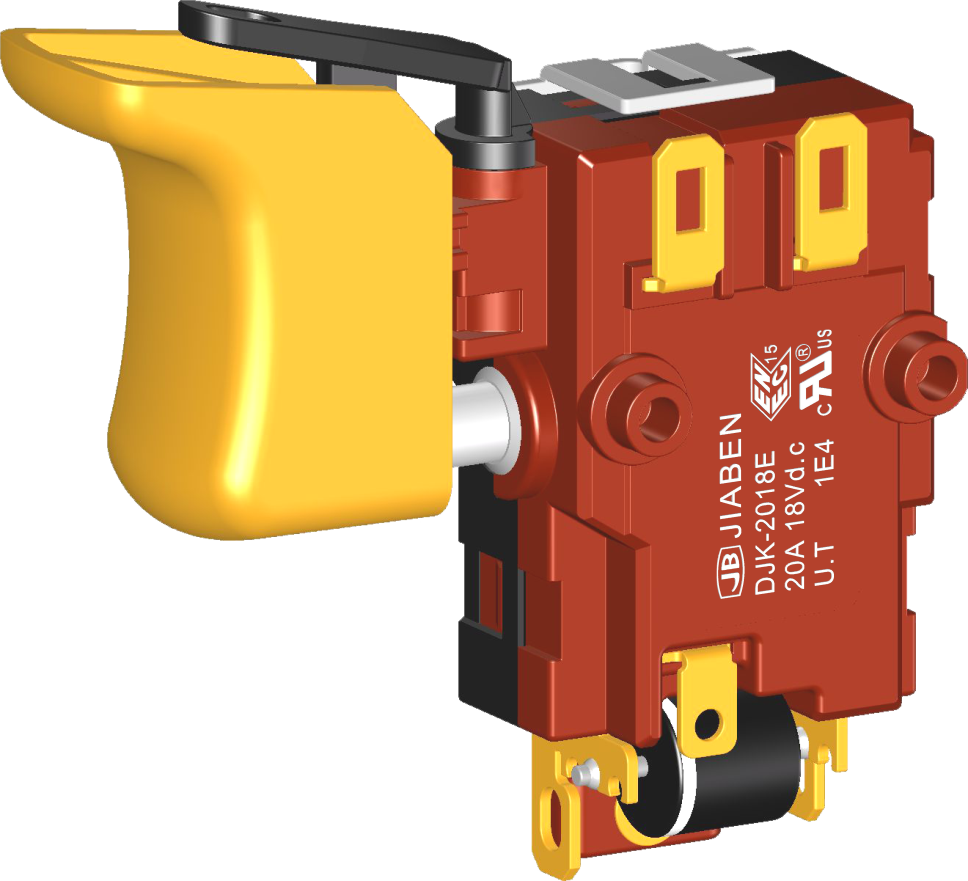

产品特征features
◆本开关结构紧凑效率高，大面积的固定式散热片为开关的安装提供方便。开关内部为单极常开带直通接点结构，通过改变输入脉冲的占空比来控制场效应管的输出电压，而实现电子调速功能。
◆开关输出端的平均电压为总电压的8- 50%至8- 90%，也可以按客户要求进行定制，开关按到底由直通接点接至电池端电压。
◆可选带以下功能或附件：
→外置mos管
→外接发光led及导线
◆the switches combine compact size with high performance, a wide scope of heat sink for mosfet and further options provide easy to mount solutions. they employ spst-no with by-pass contact, integrated pwm (pulse width modulated) electronics in various dimensions.
◆average duty cycle of motor voltage 8 - 50% to 8 - 90%, then by-pass to battery voltage (according to customer's demand).
◆optional with the function or accessory as follows:
→extrenal mosfet version
→auxiliary led and wires
技术数据technical data
→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. current at 36vd.c25a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric streng th of reinforced500v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
◆开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
◆the electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class ii .

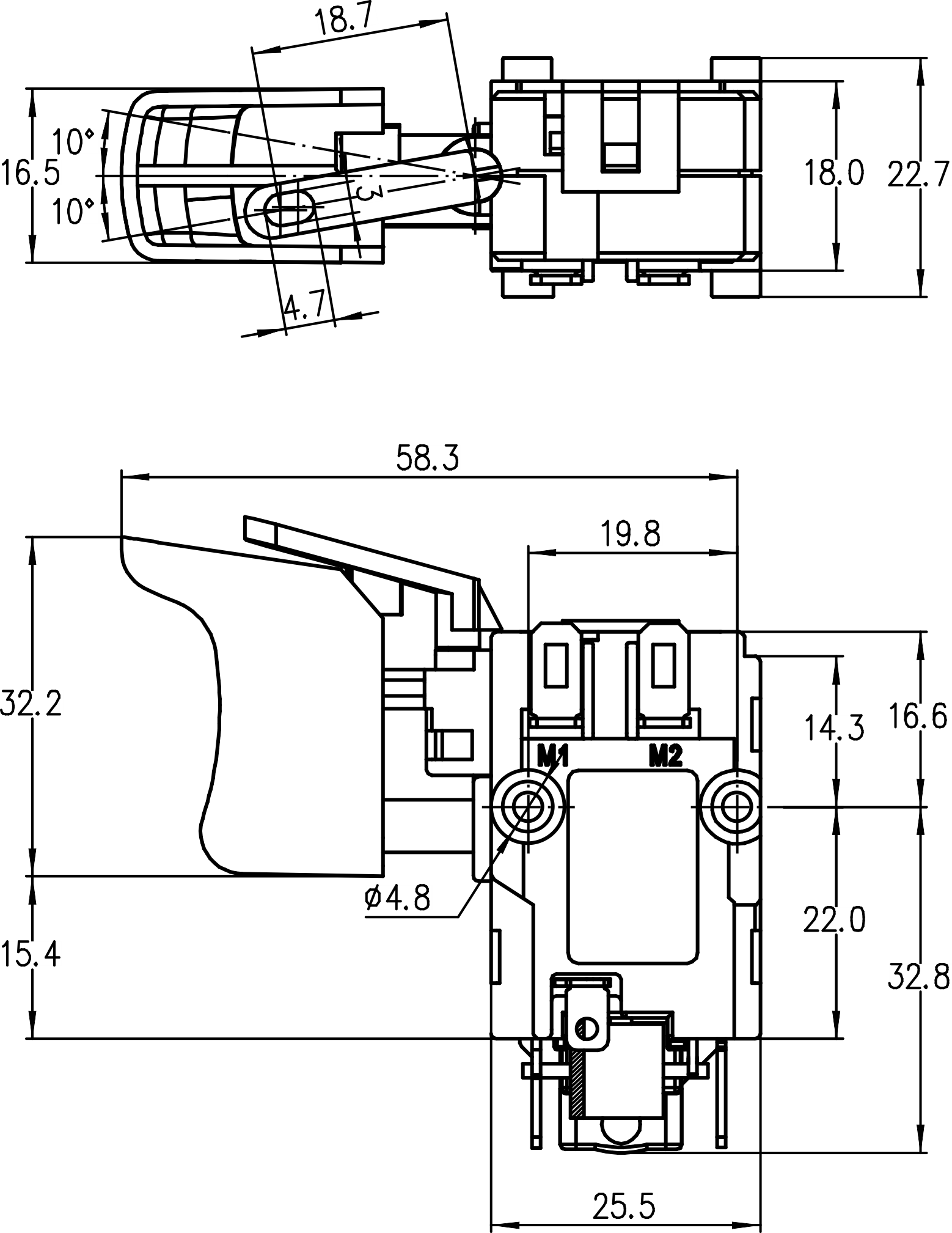

端子类型terminals
◆输入端/输出端 input side/output side:
→焊接端子 solder terminal 48x0.8mm
