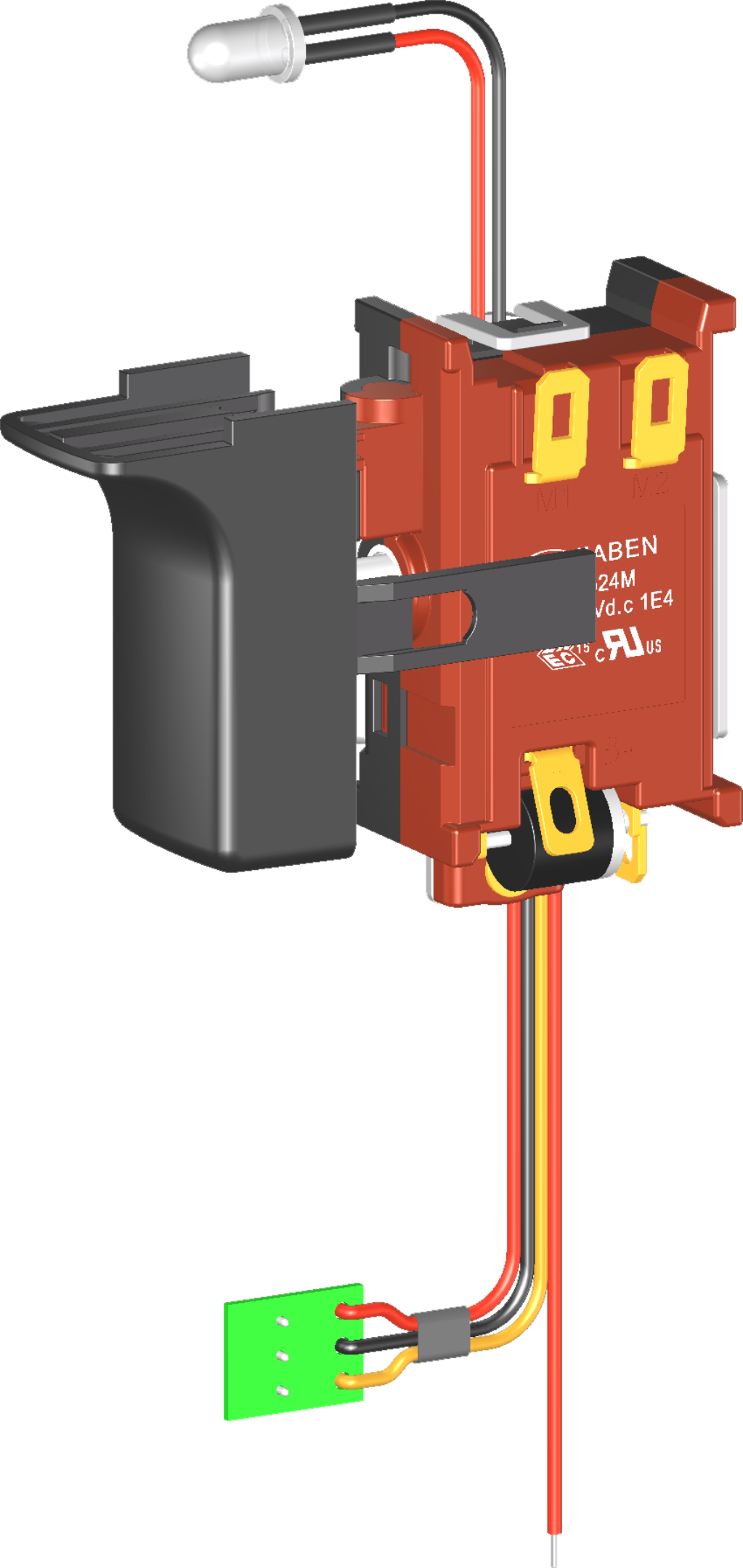

◆本开关结构紧凑效率高，大面积的固定式散热片为开关的安装提供方便。开关内部为单极常开带直通接点结构，通过改变输入脉冲的占空比来控制场效应管的输出电压，而实现电子调速功能。

◆开关输出端的平均电压为总电压的8- 50%至8- 90%，也可以按客户要求进行定制，开关按到底由直通接点接至电池端电压。

◆可选带以下功能或附件:

→外置mos管
→带软胶扳机
→外接led及导线
→外接电池温度检测导线

→智能调速功能，可带软启动、欠压保护、过流保护、电池过温保护

◆the switches combine compact size with high performance, a wide scope of heat sink for mosfet and further options provide easy to mount solutions. they employ spst-no with by-pass contact, integrated pwm (pulse width modulated) electronics in valrious dimensions.
◆average duty cycle of motor voltage 8 - 50% to 8 - 99%, then by-pass to battery voltage (according to customer's demand).
◆optional with the function or accessories as follows:

→external mosfet version

→trigger covered with rubber

→auxiliary led and wires

→auxiliary wire for temperature test

→multi-function, optional soft start, under-voltage protection, over current protection, battery temperature protection

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. current at 36vd.c30a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
◆开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
◆the electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class ii.

◆输入端/输出端 input side/output side:

→焊接端子 solder terminal

★ 本产品荣获实用新型专利，专利号：zl201920475247.7

★ utility model patented with no. is zl201920475247.7
