fa1-3s交流扳机开关

fa1-3s series ac trigger switch

产品描述product description

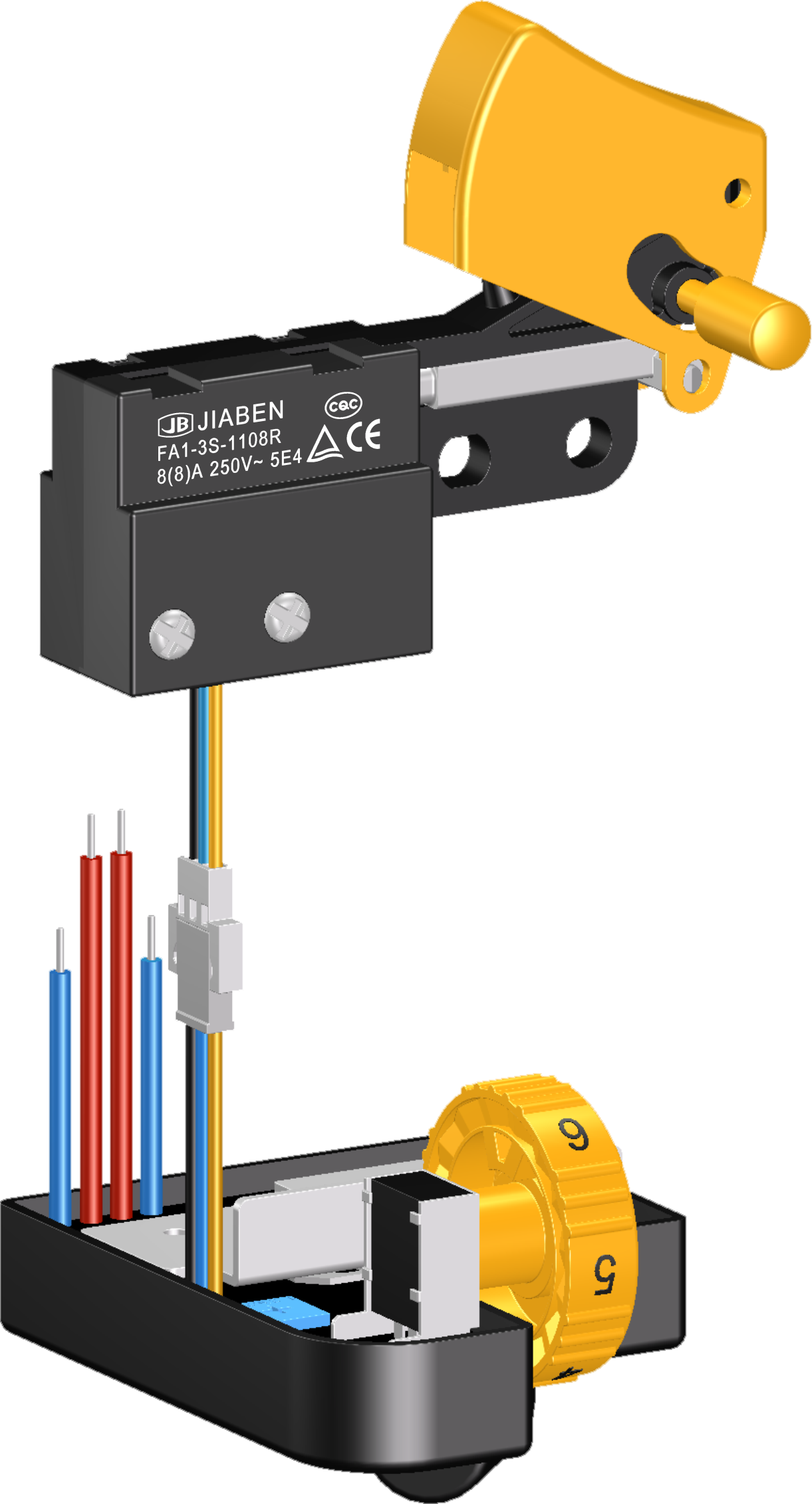

fa1-3s系列是一款专用型扳机开关,集成防尘功能,带通断和电位器输出功能,可以和mk07调速线路板进行配套,应用于各类电动工具,如:150mm角磨机和抛光机等。开关扳机和锁钮可根据客户要求进行定制,线路板组件功能可以任意进行调节。
fa1-3s series are special type trigger switches, integrated dustproof, optional with mk07 pcb assembly, for popular used in portable power-tools such as: 150mm angle grinders, polisher grinders, etc. the trigger and lock button can be make according to customer's request.

产品特征features

◆可选带以下功能 optional with following functions:
→on-off通断功能 on-off version
→0n-off通断功能带线性电位器输出 on-off version with passive linear potentiometer
◆可选带以下锁定类型 optional with following lock types:
→无锁 no lock
→闭合锁定 lock-on

端子类型terminals

◆输入端 input side:
→接线柱端子 pillar terminals φ=3mm
◆输出端 output side:
→插入式端子可插入沾锡导线,带插片端子导线或铜包头导线
→push-in terminals for soldered strands, strands with end sleeve or strands with end claws
◆线路板输出端 pcba outputside:
→导线端子 wire leads

电气参数和认证 electric rating and certification

订货信息ordering information
