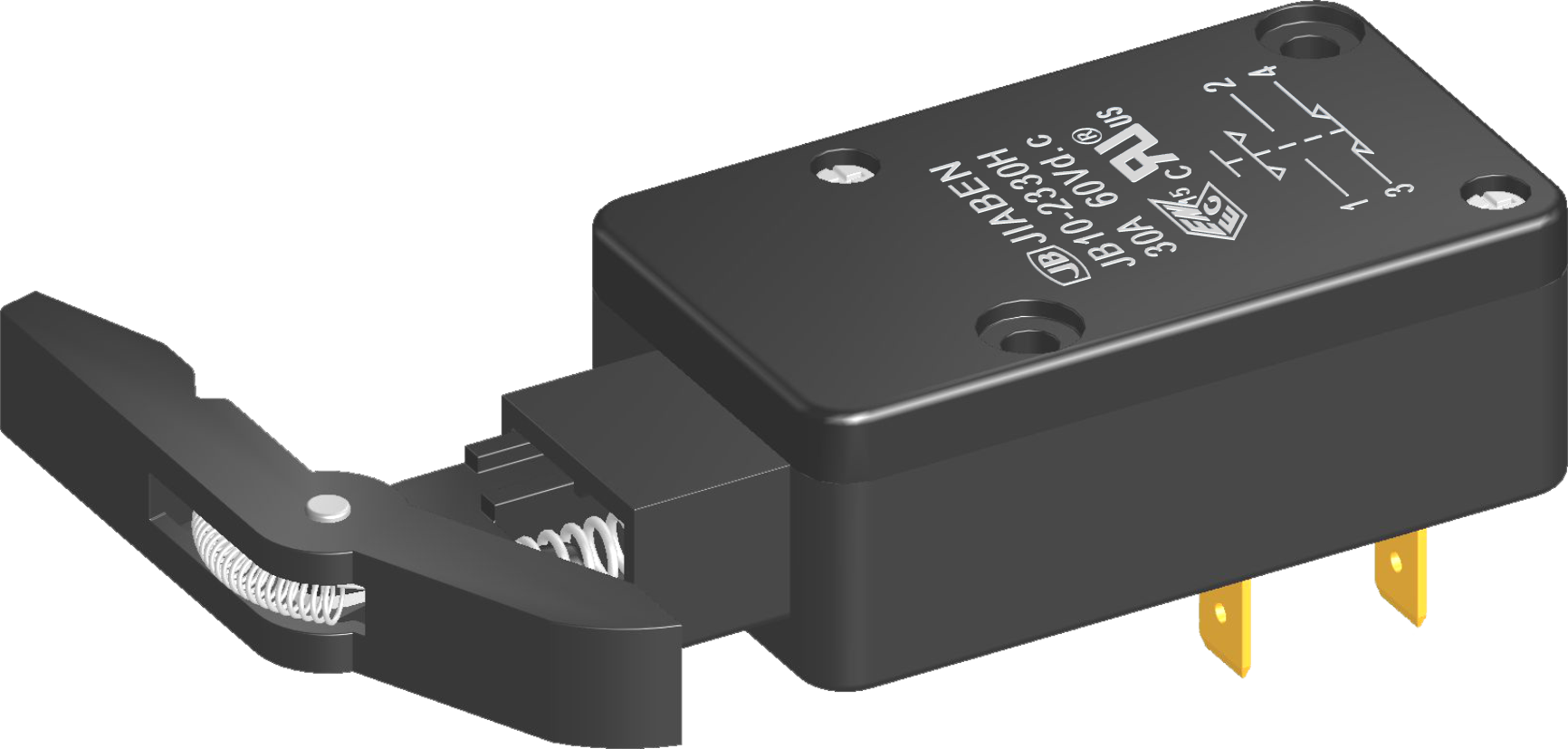

jb10高额定值割草机专用开关

jb10 series high rated switches special for lawnmovers

产品描述product description

jb10系列是一款专用型的按钮开关,特别适用于高额定值的交流和直流电动割草机。
jb10 series are special type push button switches, special for high rated ac and dc electric lawnmowers.

产品特征features

◆可选带以下功能 optional with the function as follows:
→双极常开  dpno (double pole normally open)
→一极常闭,另一极常开 one pole normally close, the other normally open
→一极常闭,另二极常开 one pole normally close, the other two poles normally open

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4/1e5
→电气耐久寿命 electrical life endurance≥1e4/5e4
→最大冲击电流 max. inrush current at 250v96a
→最大冲击电流 max. inrush currentat 125v120a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm

电气参数和认证 electric rating and certification

订货信息ordering information
