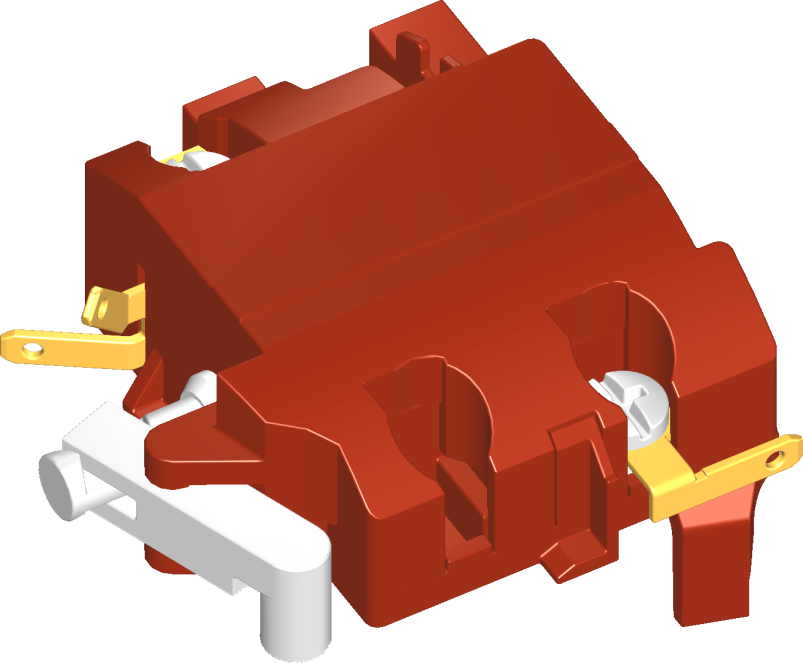

jb06/jb08旧款电动工具专用开关

jb06/jb08 series switches special for previous type power-tools

产品描述product description

◆jb08系列是一专用的旧款机型开关，集成防尘功能，适用于一般手持式电动工具，如：125和150角向磨光机、抛光机、模具电磨等。
◆jb08 series are one special type switch for previous type power-tools, integrated dustproof, commonly for used in portable power-tools such as: 125mm and 150mm angle grinders, polishers, die grinders, etc.

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v48a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端 input side:
→螺钉端子 screw terminals m4
◆输出端 output side:
→插片端子 plug-in terminals 2.8×0.8mm

电气参数和认证 electric rating and certification
