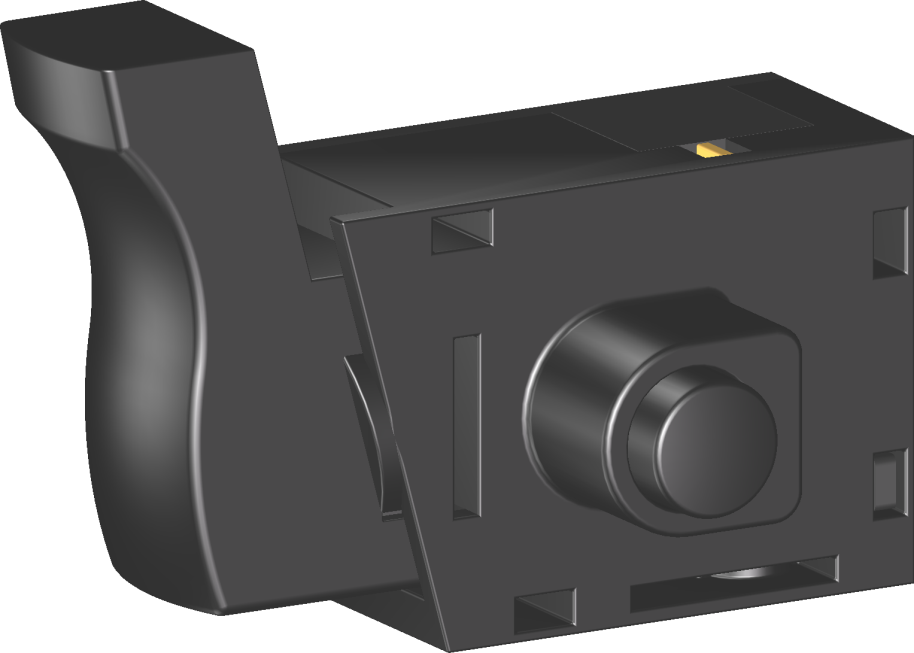

jb06/jb08旧款电动工具专用开关

jb06/jb08 series switches special for previous type power-tools

产品描述product description

jb06系列是一专用的旧款机型开关,集成防尘功能,适用于手持式电动工具,如:电钻、电锤、往复锯、马刀锯、曲线锯、角磨机、搅拌器、砂光机等。
jb06 series are one special type switch for previous type power-tools, integrated dustproof, for used in portable power-tools, such as electric drills, rotary hammers, reciprocating saws, sanders, sabre saws, jig saws, electric mixers, angle grinders, etc.

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端 inpust side:
→接线柱端子 pillar terminals φ=3mm
◆输出端 output side:
→插入式端子可插入插片端子2.8×0.8mm
→push-in terminals for plug-in terminals 2.8×0.8mm

电气参数和认证 electric rating and certification
