产品描述product description

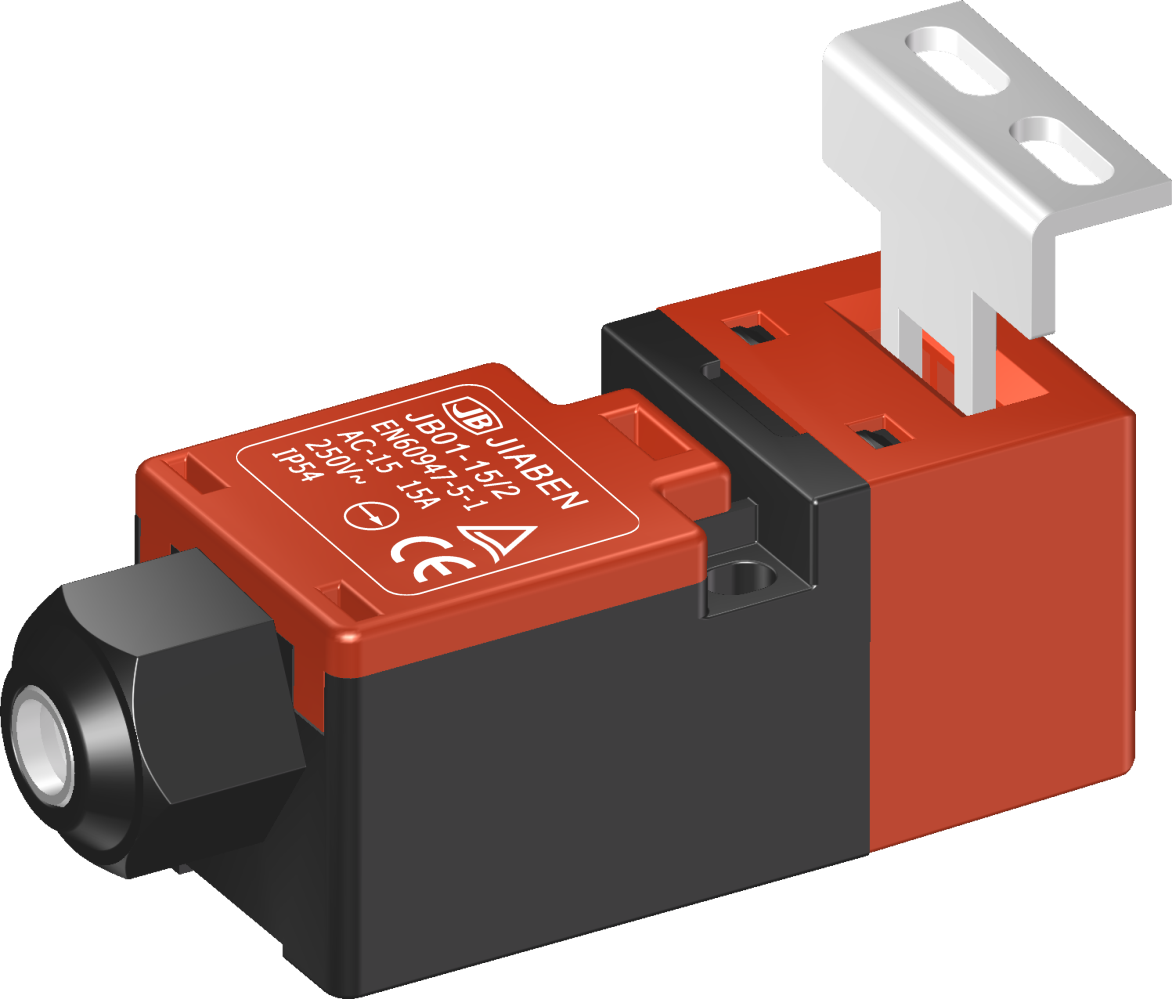

◆jb01系列是一款大电流的安全限位开关，集成防尘防水功能，jb010b为迷你款，适用于各类台式电动工具和园林工具，如：台式推拉锯、台式圆锯、台式刨床、台式铣床、台式车床、台式线锯、台式钻床和家用碎枝机等。
◆jb01 series are high rated safety limited switches, integrated dustproof and waterproof, jb010b is mini-type, for used in bench top power-tools or gardening tools, such as bench push-pull saws, bench circular saws, bench planers, bench routers, bench lathes, bench scroll saws, bench drill presses, domestic shredders, etc.
产品特征features
◆可选带以下功能 optional with the function as follows:
→双极常开 dpno (double pole normally open)
→双极常闭 dpnc (double pole normally close)
◆可选带以下附件 optional with the accessories as follows:
→钥匙扣 key
→门控制杆 handle for door
技术数据technical data
→机械耐久寿命 mechanical life endurance≥5e4 / 1e5
→电气耐久寿命 electrical life endurance≥1e4 / 5e4
→最大冲击电流 max. inrush current at 250v90a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip54 max.
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆jb01输入端/输出端 input side/output side of jb01:
→螺钉端子 screw terminals m4
◆jb01b输入端/输出端 input side/output side of jb01b:
→插片端子 plug-in terminals 4.8×4.8mm
电气参数和认证 electric rating and certification
